Rail Pressure Sensor (RPS): Specification

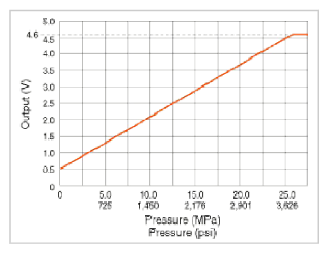

Fig 1: Rail Pressure Sensor Output Voltage Versus Pressure Graph
G09367486Courtesy of HYUNDAI MOTOR AMERICA
