Home › Hyundai › 2014 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Electrical › Starter › Starting System › Starter › Components and Components Location › Components

Components and Components Location: Components

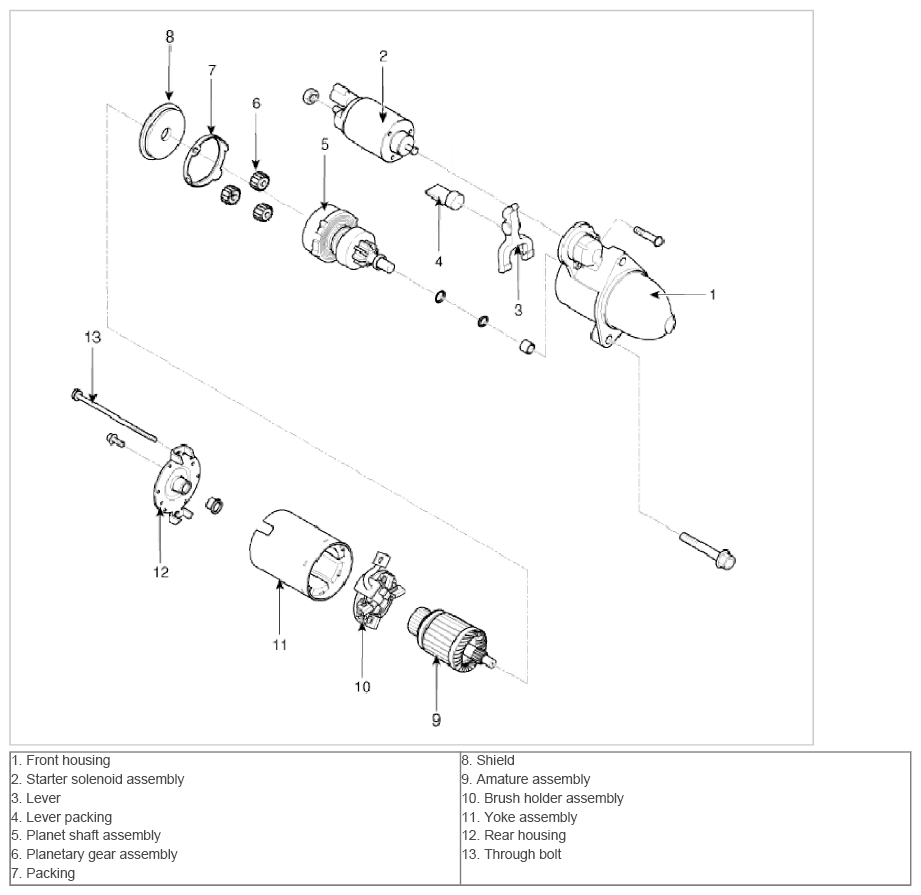

Fig 1: Exploded View Of Starter
G09364843Courtesy of HYUNDAI MOTOR AMERICA
