Components and Components Location: Components

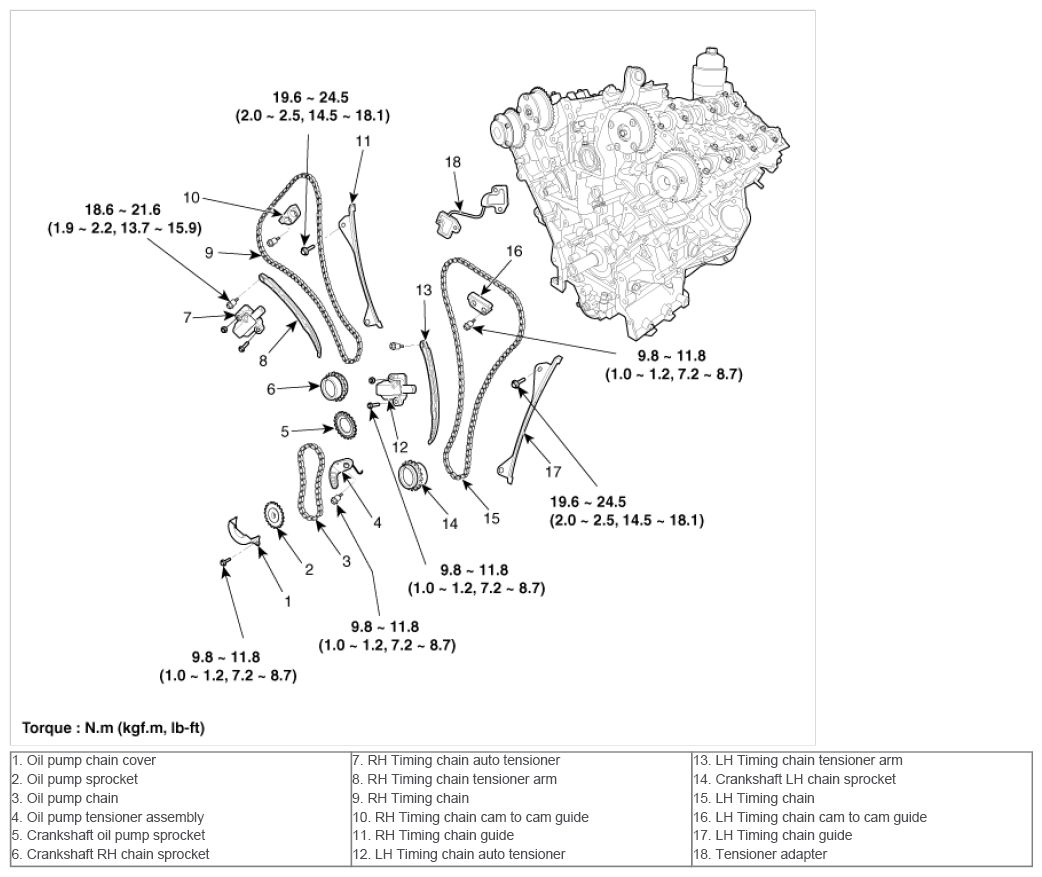

Fig 1: Timing Chain Replacement Components With Torque Specifications
G09267218Courtesy of HYUNDAI MOTOR AMERICA
