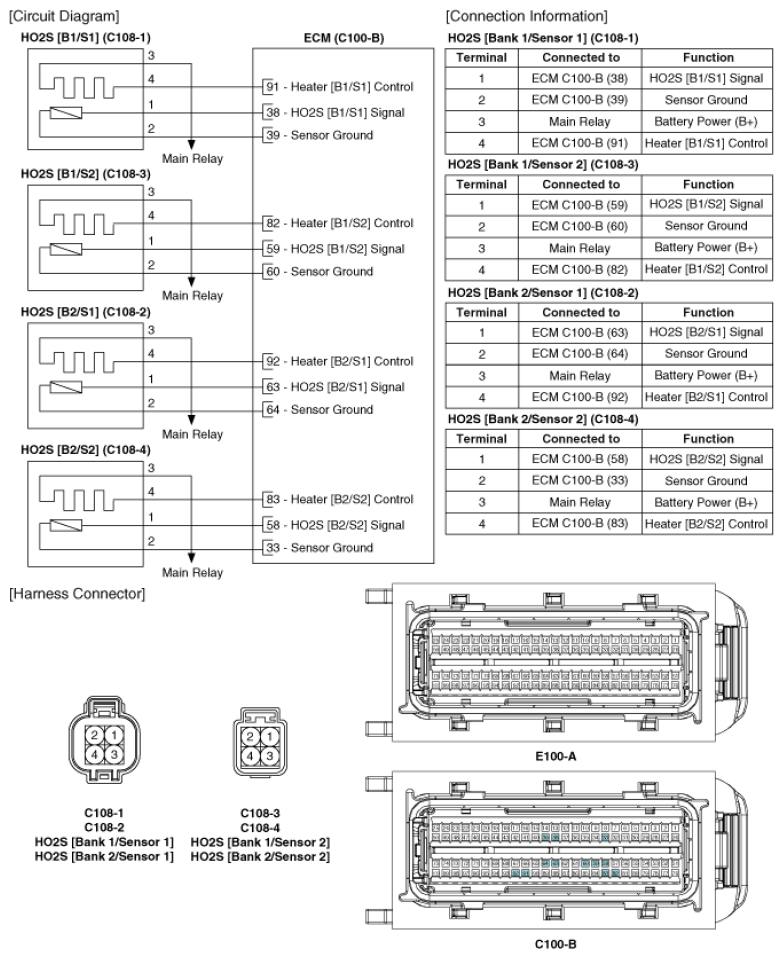

Home › Hyundai › 2014 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
