Signal Waveform & Data

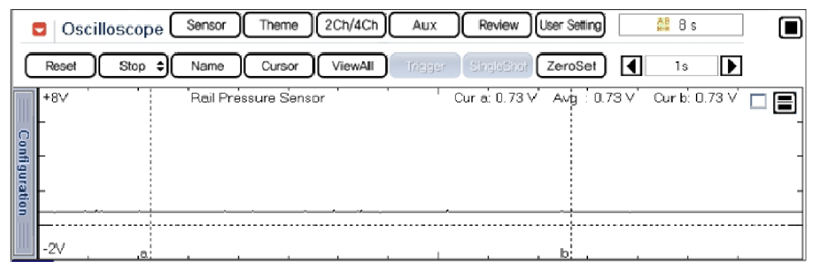

Fig 1: Display - Normal Waveform Of Rail Pressure Sensor At Idle
G09273085Courtesy of HYUNDAI MOTOR AMERICA

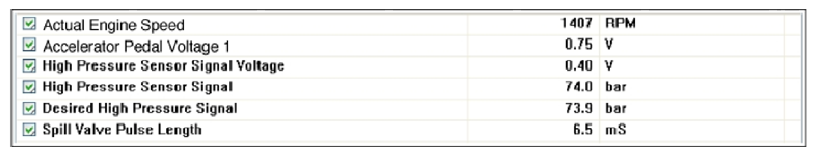

Fig 2: Display - Fuel Rail Pressure Current Data
G09273086Courtesy of HYUNDAI MOTOR AMERICA

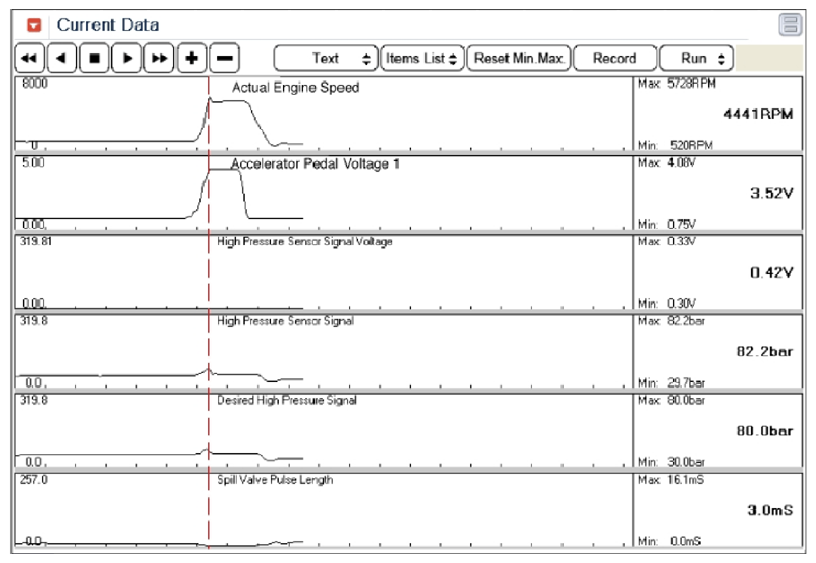

Fig 3: Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G09273087Courtesy of HYUNDAI MOTOR AMERICA
