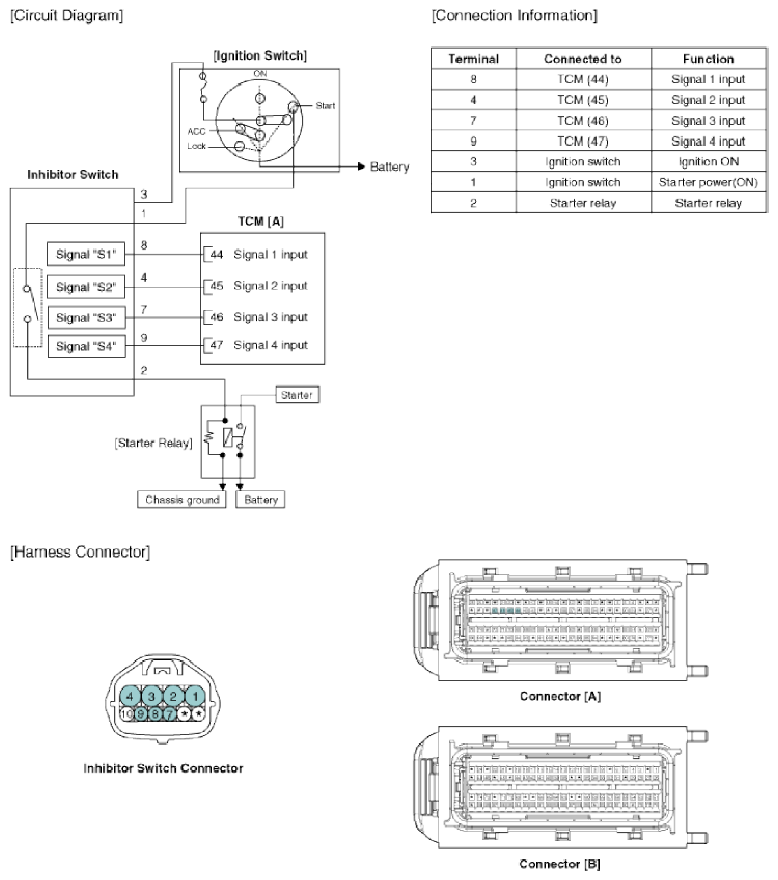

Home › Hyundai › 2014 › Santa Fe XL Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
