Signal Waveform & Data

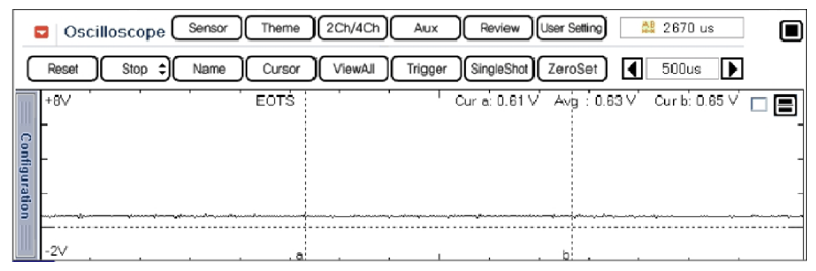

Fig 1: Display - Normal Waveform Of EOTS At 76°C (168.4°F)
G09273100Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Display - Normal Data Of IATS, ECTS & EOTS At IG "ON"
G09273101Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Display - Normal Data Of IATS, ECTS & EOTS Engine At Operating Temperature
G09273102Courtesy of HYUNDAI MOTOR AMERICA
