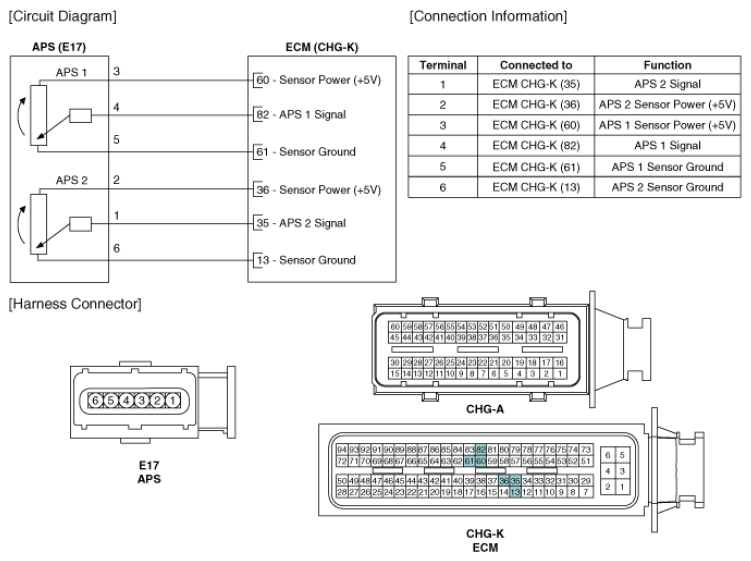

Home › Hyundai › 2014 › Sonata Hybrid Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
