Sonata Hybrid Limited
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Fuel Tank Pressure Sensor (FTPS)
›
Schematic Diagrams
Schematic Diagrams

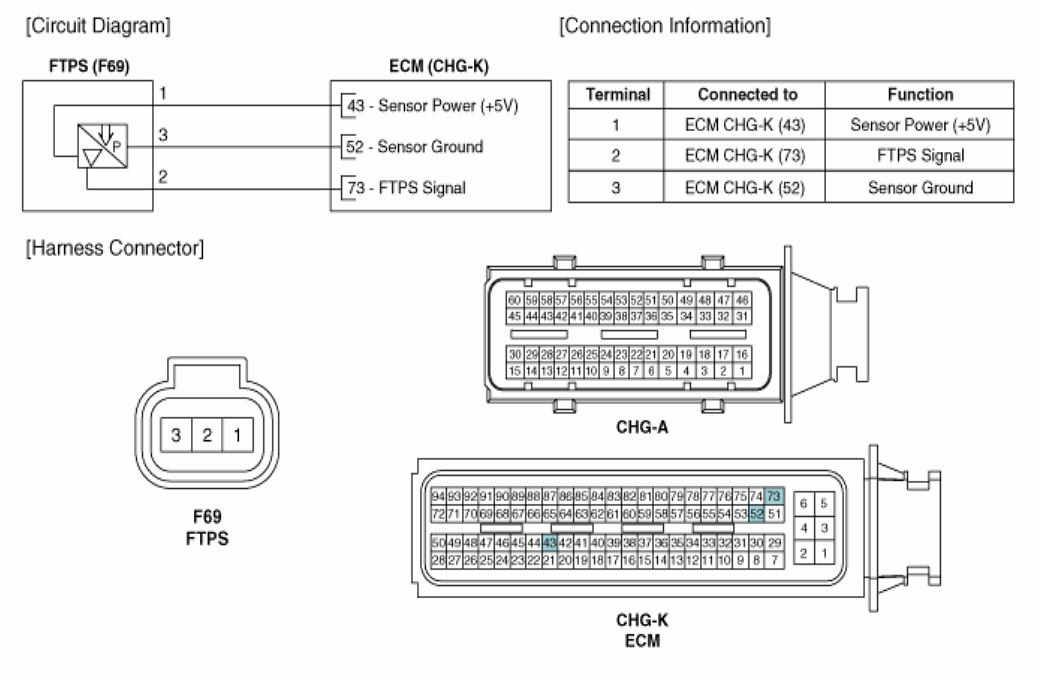

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
