Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

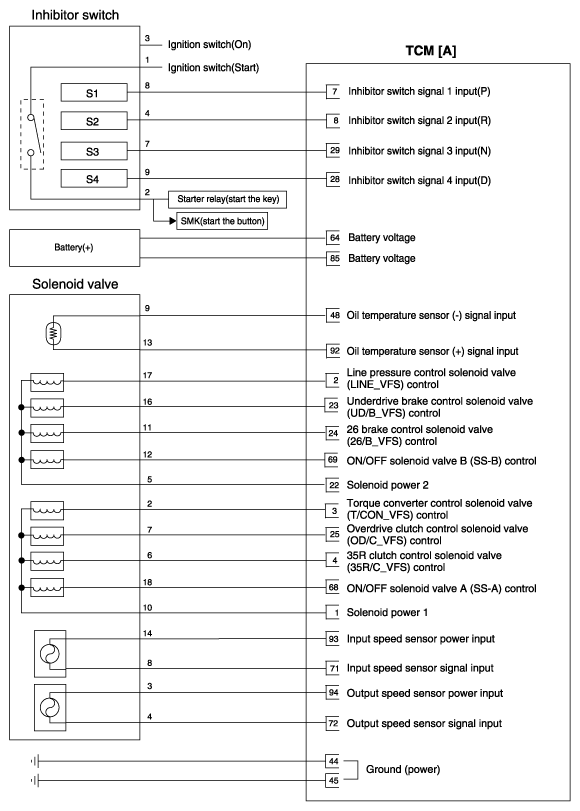

Fig 1: Inhibitor Switch - Circuit Diagram
G09802494Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Shift Lever - Circuit Diagram
G09802495Courtesy of HYUNDAI MOTOR AMERICA
