Front Wheel Alignment: Caster

Caster angle : 4.05°±0.5°

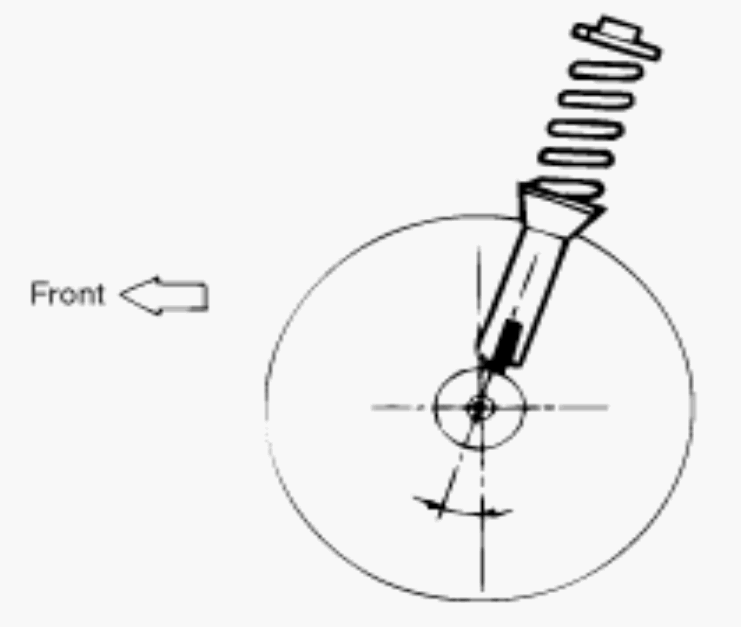

Fig 1: Identifying Caster

Courtesy of HYUNDAI MOTOR CO.

NOTE:

The worn loose or damaged parts of the front suspension assembly must be replaced prior to measuring front wheel alignment.
Camber and caster are pre-set to the specified value at the factory and don't need to be adjusted.
If the camber and caster are not within specifications, replace bent or damaged parts.
