Power Window Main Switch

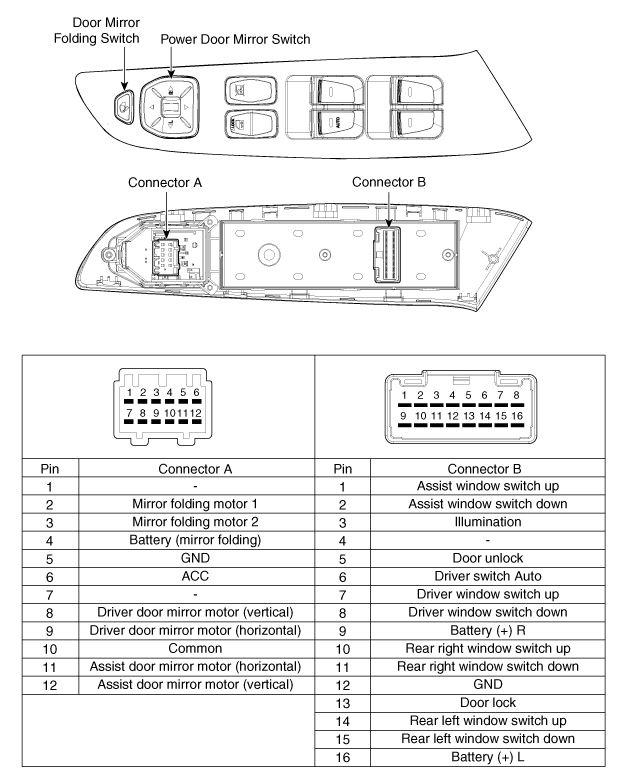

Fig 1: Identifying Power Window Main Switch With Connector Reference Chart
G00546863Courtesy of HYUNDAI MOTOR CO.

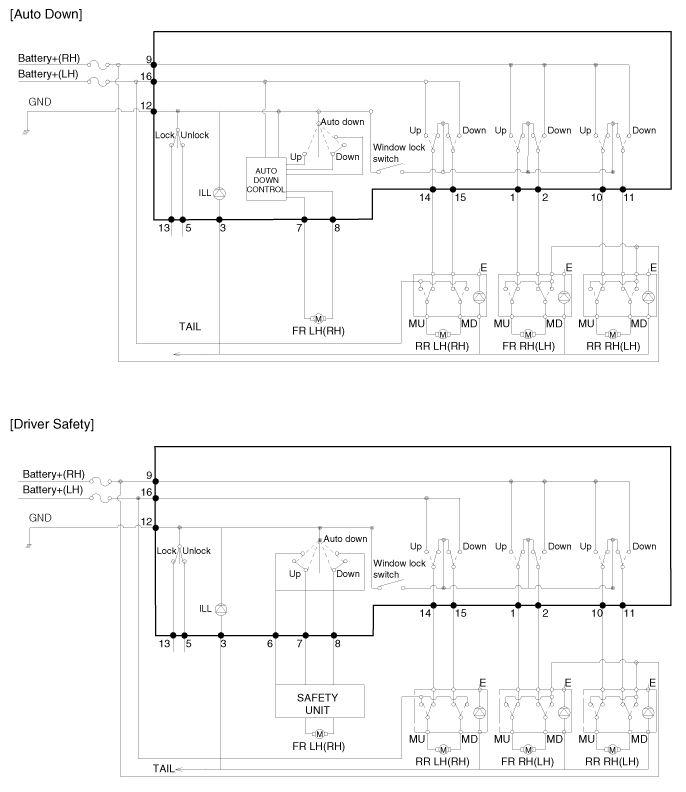

Fig 2: Power Window Main Switch Connector Circuit Diagram
G00546864Courtesy of HYUNDAI MOTOR CO.
