Circuit Diagram: (M/T)

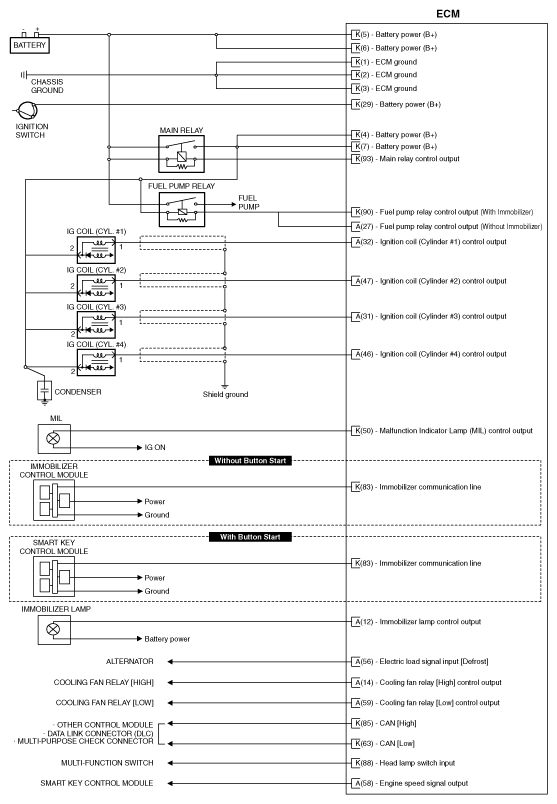

Fig 1: Engine Control Module System Circuit Diagram (M/T; 1 Of 4)
G09798565Courtesy of HYUNDAI MOTOR AMERICA

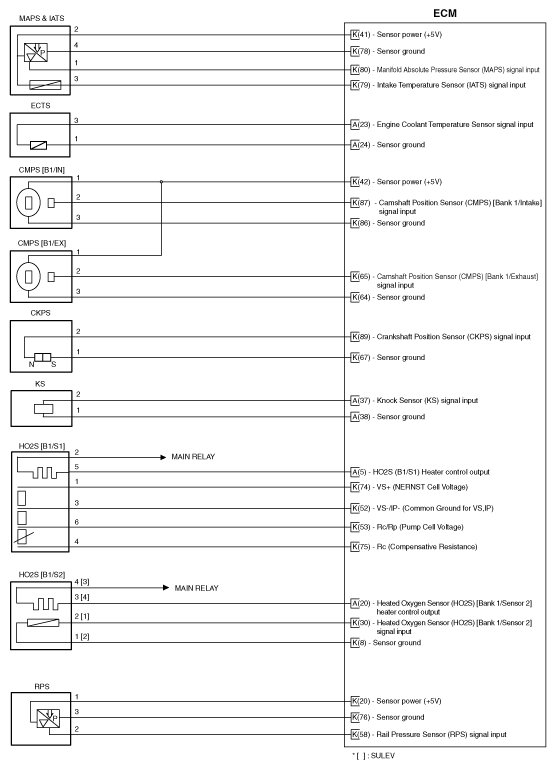

Fig 2: Engine Control Module System Circuit Diagram (M/T; 2 Of 4)
G09798566Courtesy of HYUNDAI MOTOR AMERICA

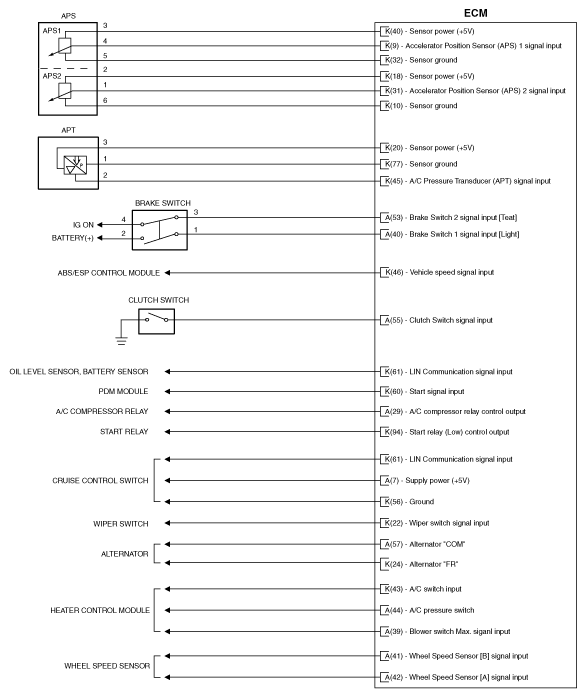

Fig 3: Engine Control Module System Circuit Diagram (M/T; 3 Of 4)
G09798567Courtesy of HYUNDAI MOTOR AMERICA

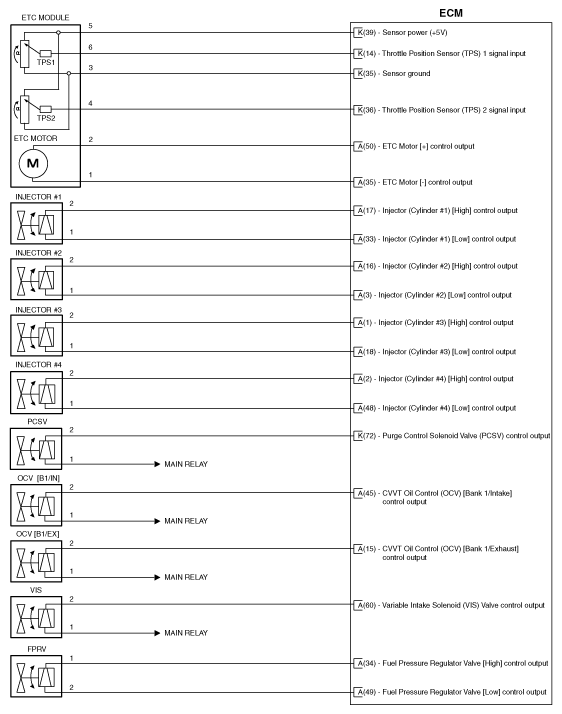

Fig 4: Engine Control Module System Circuit Diagram (M/T; 4 Of 4)
G09798568Courtesy of HYUNDAI MOTOR AMERICA
