Automatic Transaxle System - 2.0L
›
Automatic Transaxle
›
Components and Components Location
›
Components Location
Components Location

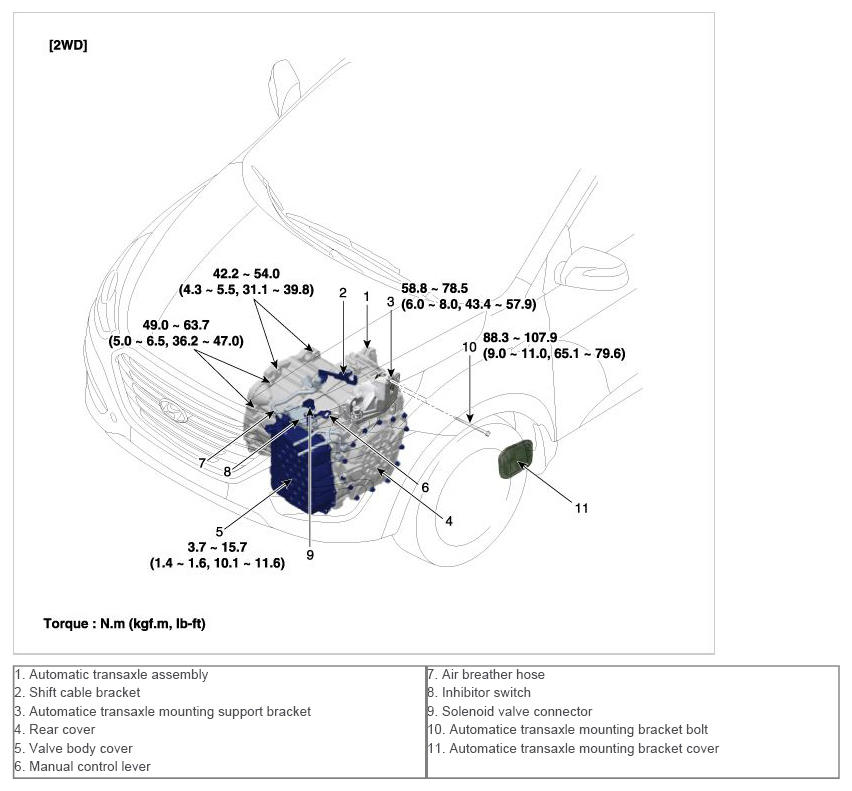

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications - 2.0L (2WD)
Courtesy of HYUNDAI MOTOR AMERICA

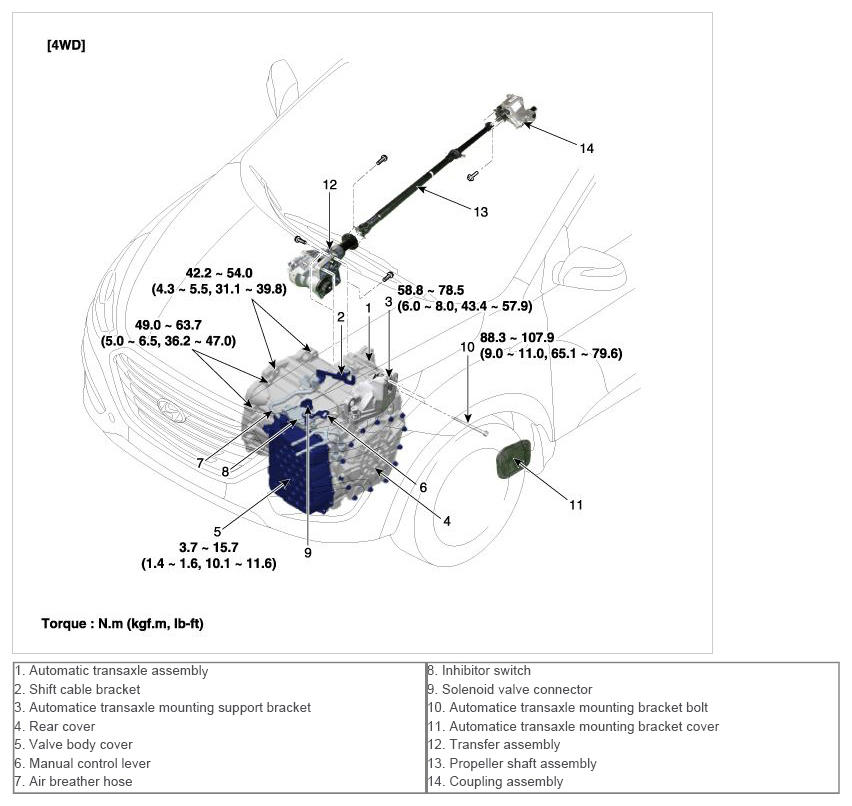

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications - 2.0L (AWD)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
