Tucson Limited, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L
›
Components and Components Location
›
Components Location
Components Location

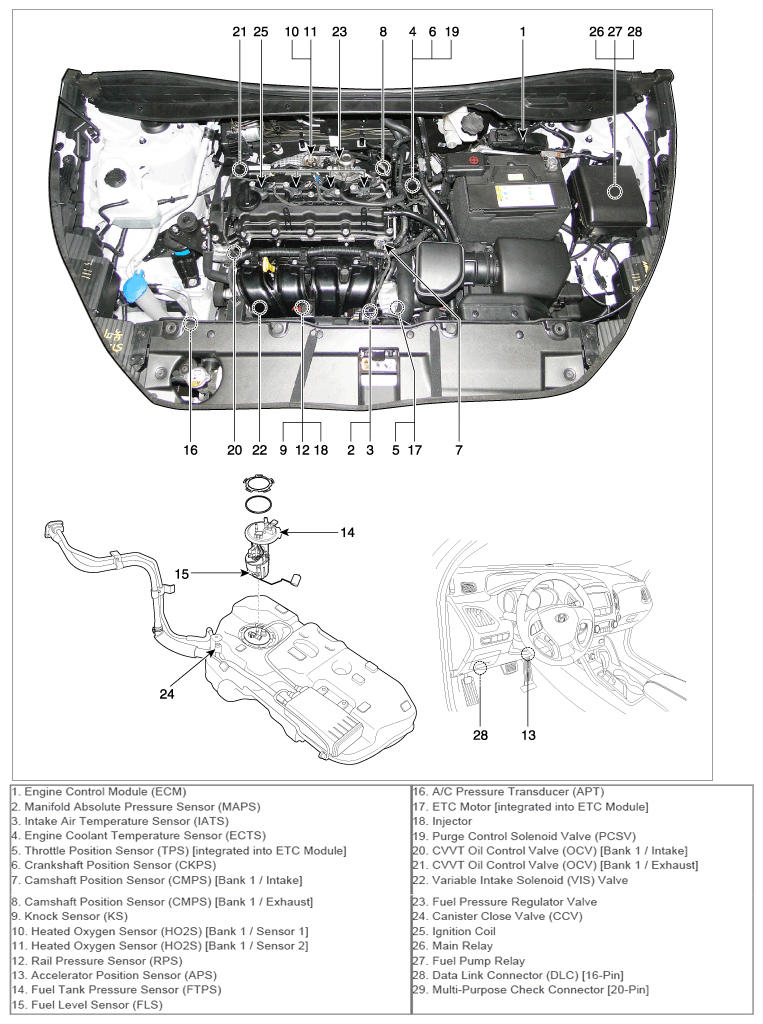

Fig 1: Identifying Engine Control Module Components (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

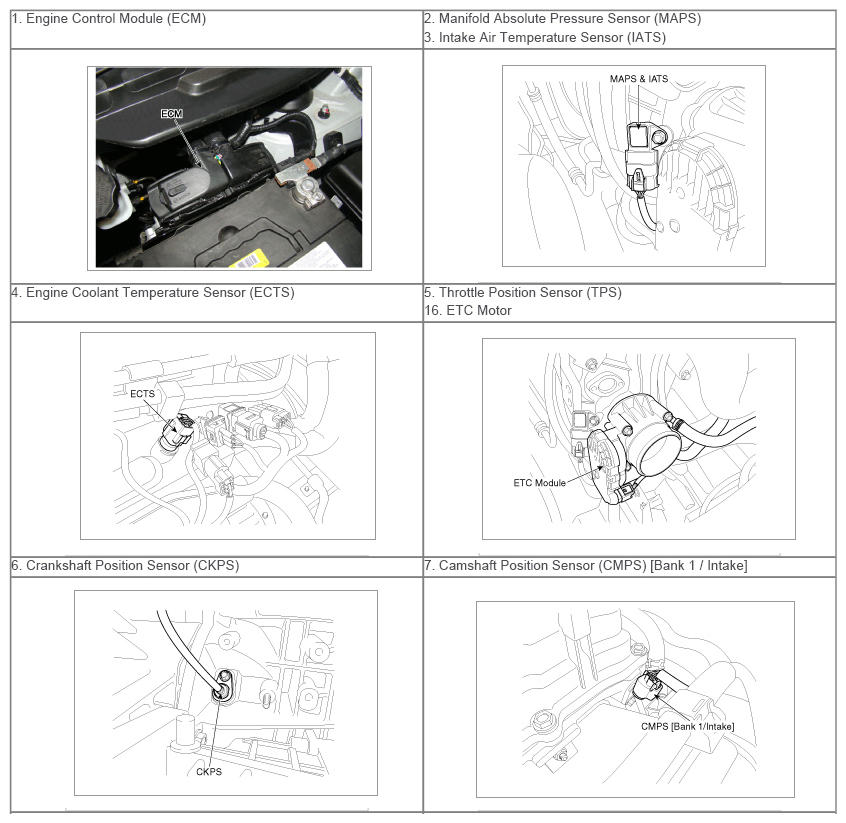

Fig 2: Identifying Engine Control Module Components (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

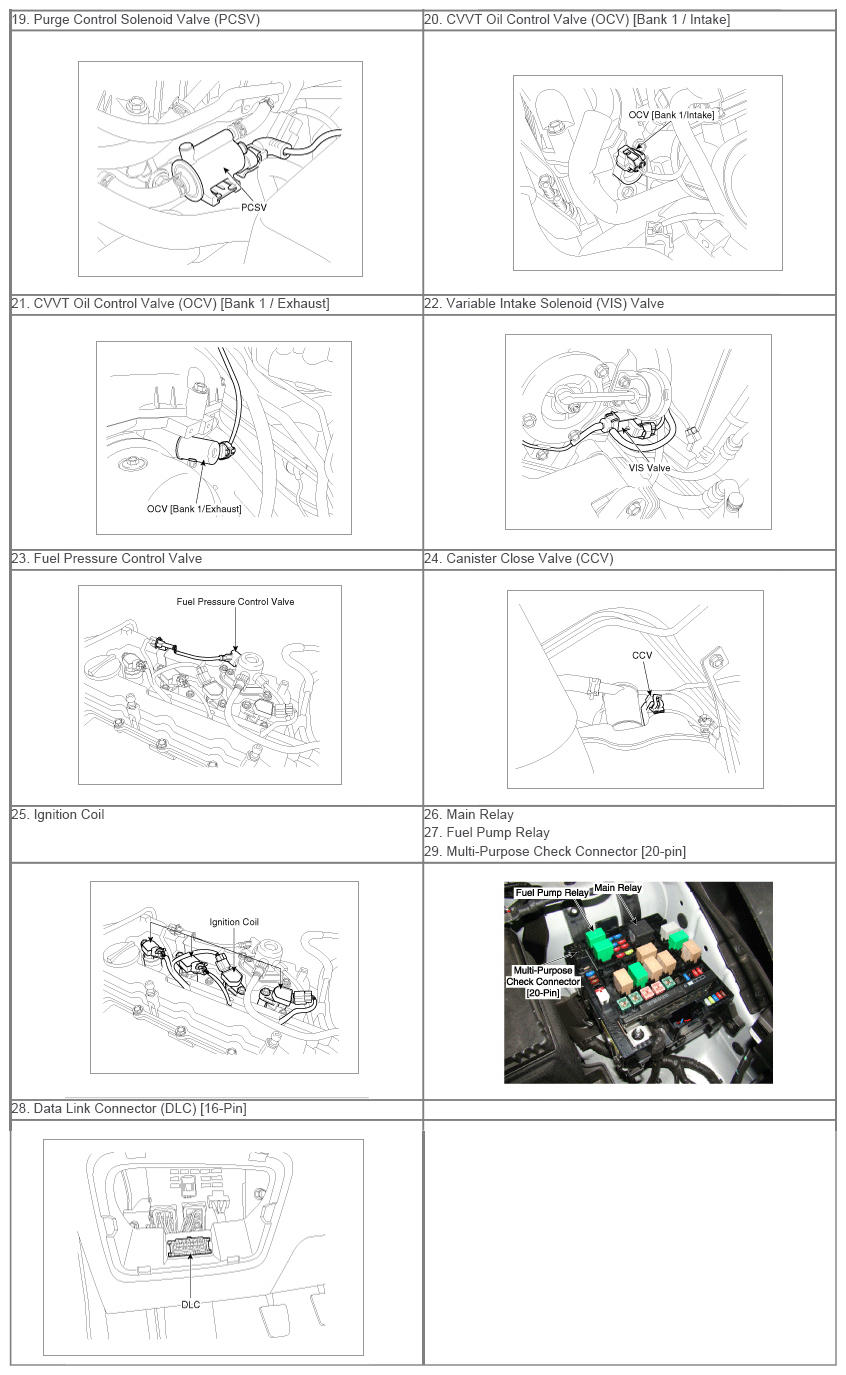

Fig 3: Identifying Engine Control Module Components (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

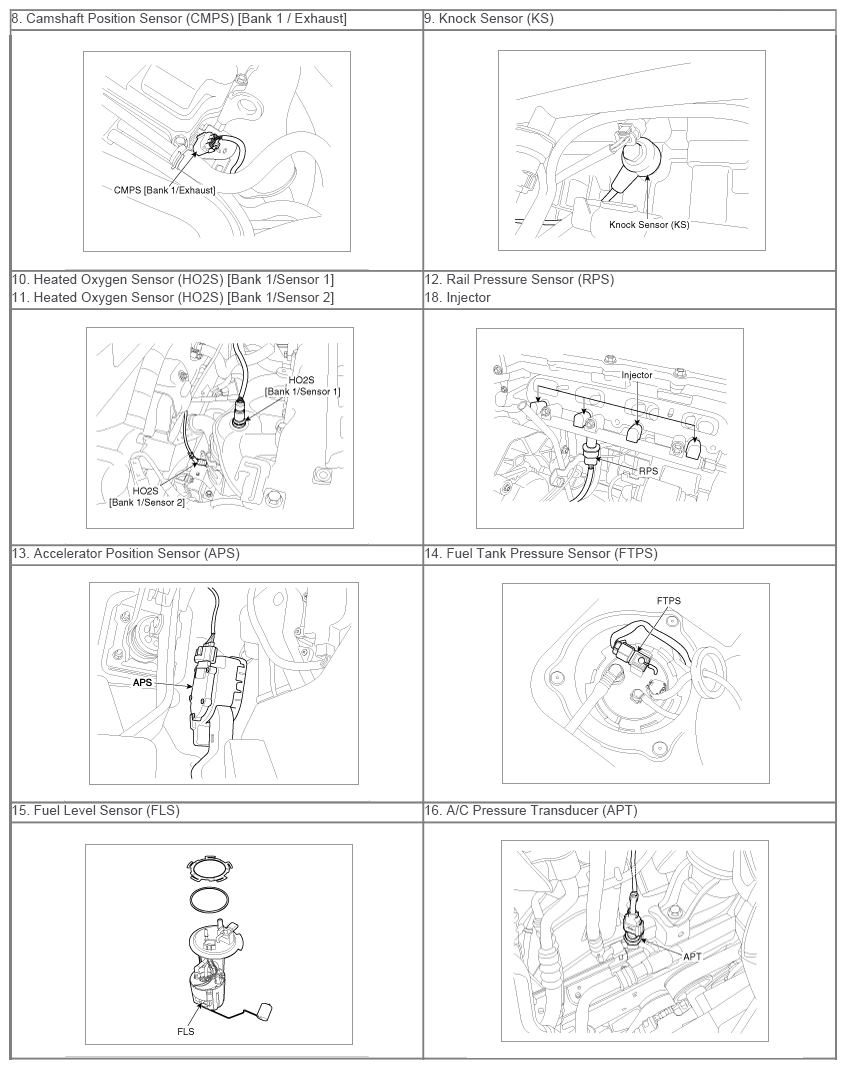

Fig 4: Identifying Engine Control Module Components (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
