Engine Control System - 2.4L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

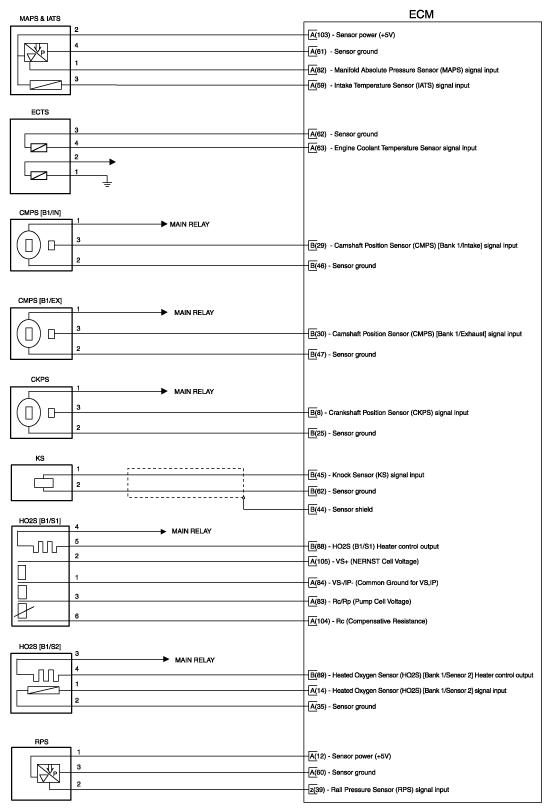

Fig 1: Engine Control Module - Circuit Diagram (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

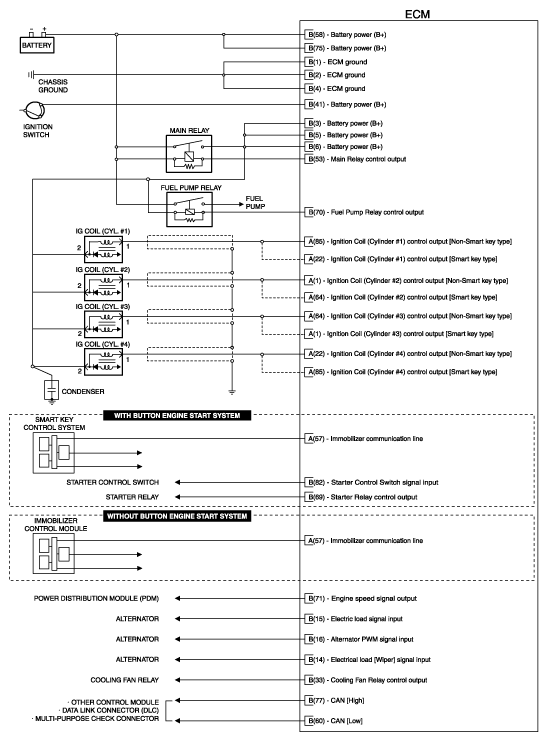

Fig 2: Engine Control Module - Circuit Diagram (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

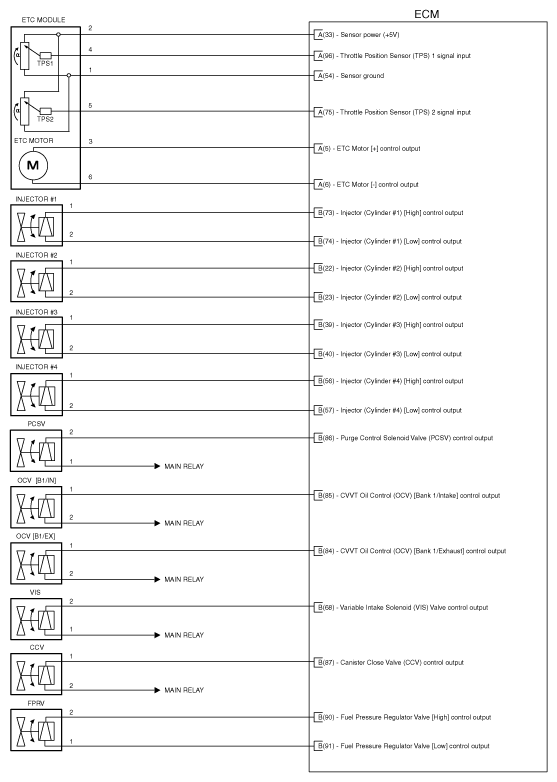

Fig 3: Engine Control Module - Circuit Diagram (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 4: Engine Control Module - Circuit Diagram (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
