Signal Waveform & Data

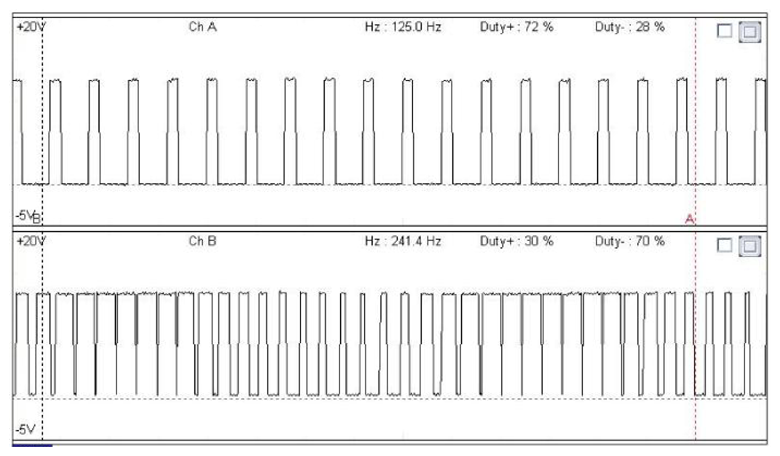

Fig 1: Display - Alternator Signal Waveform Screen - Idle Status

Courtesy of HYUNDAI MOTOR AMERICA

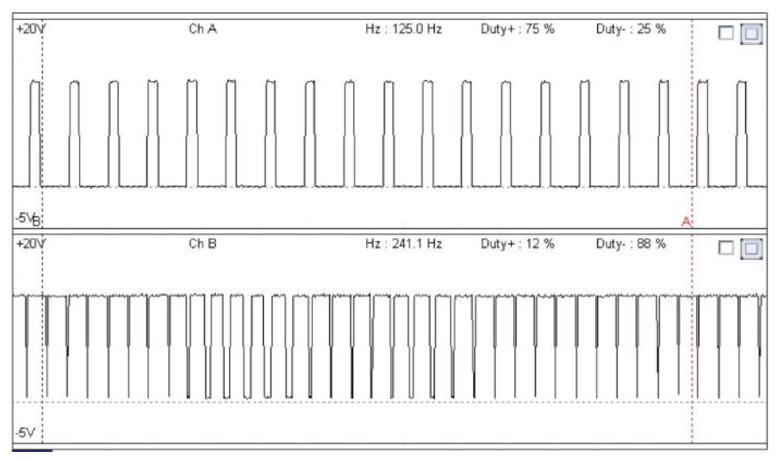

Fig 2: Display - Alternator Signal Waveform Screen - Electrical Load (Head Lamp And Defrost ON)

Courtesy of HYUNDAI MOTOR AMERICA

Duty(+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON)

PCM controls generation of alternator with duty from FR terminal when electrical Loads turn on
