Component Location

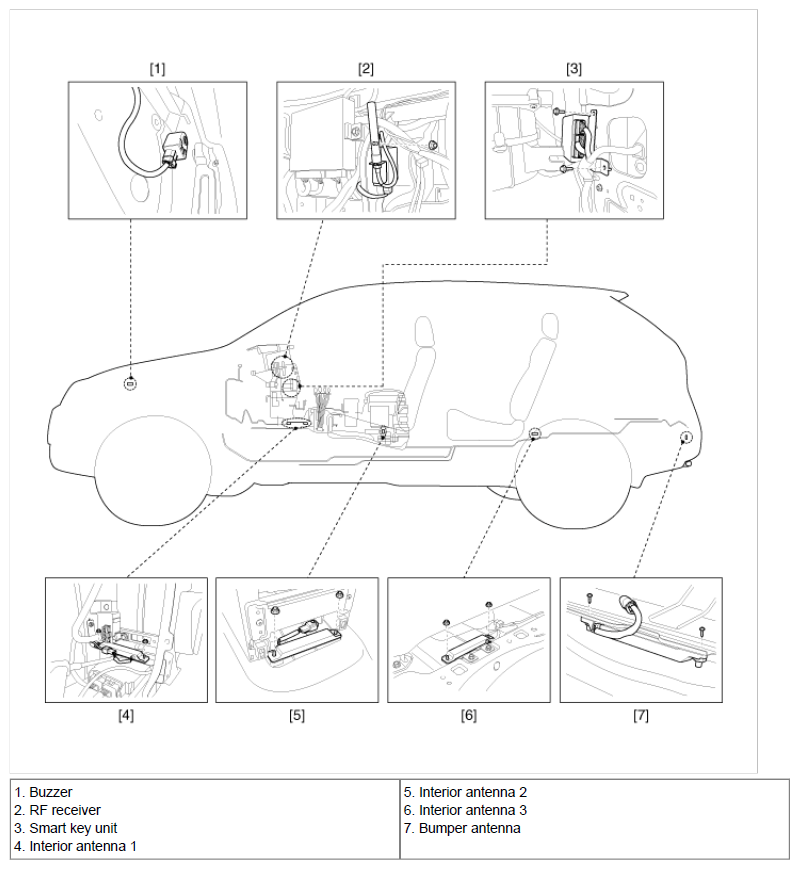

Fig 1: Identifying Smart Key System Components (1 Of 2)
G06875366Courtesy of HYUNDAI MOTOR CO.

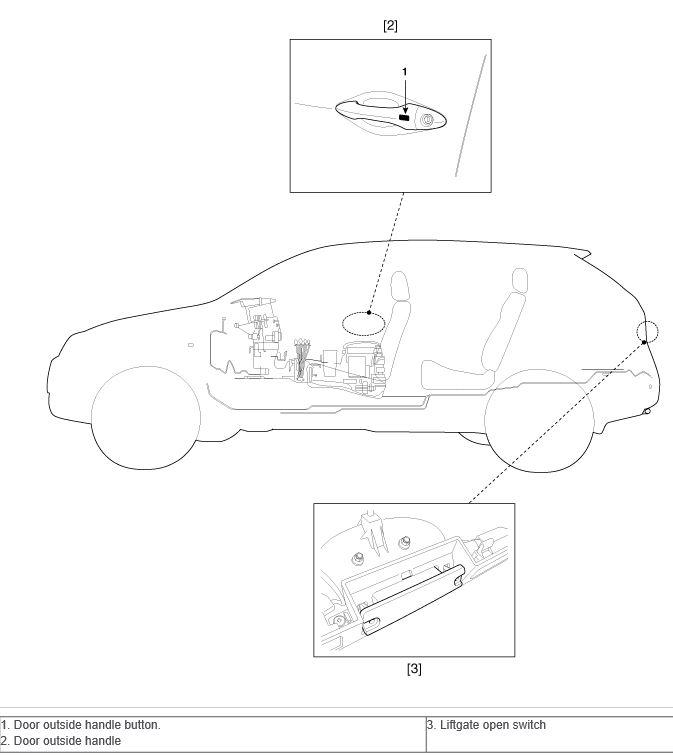

Fig 2: Identifying Smart Key System Components (2 Of 2)
G00547285Courtesy of HYUNDAI MOTOR CO.
