ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "ESCL STATUS INFO".

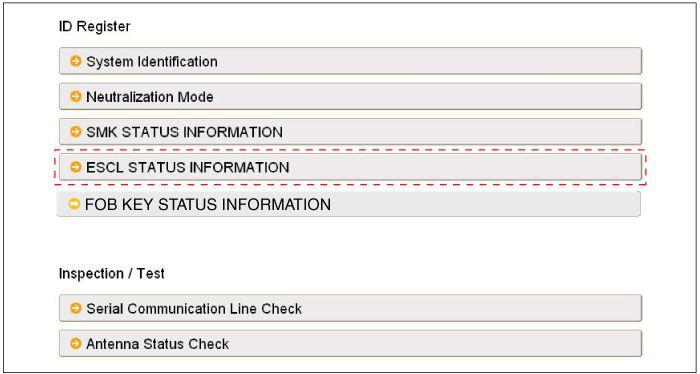

    Fig 1: Selecting ESCL Status Information
    G00547291Courtesy of HYUNDAI MOTOR CO.

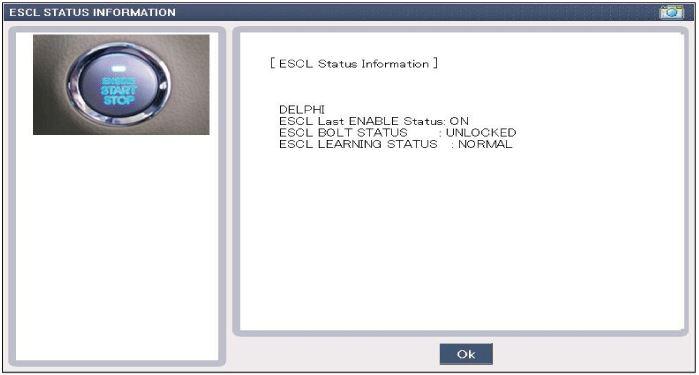

    Fig 2: Display - ESCL Status Information Screen
    G00547292Courtesy of HYUNDAI MOTOR CO.
