Hyundai
›
2014
›
Tucson SE, FWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Smart Key System
›
Smart Key Unit
›
Components and Components Location
›
Components
›
Connector Pin Information
Connector Pin Information

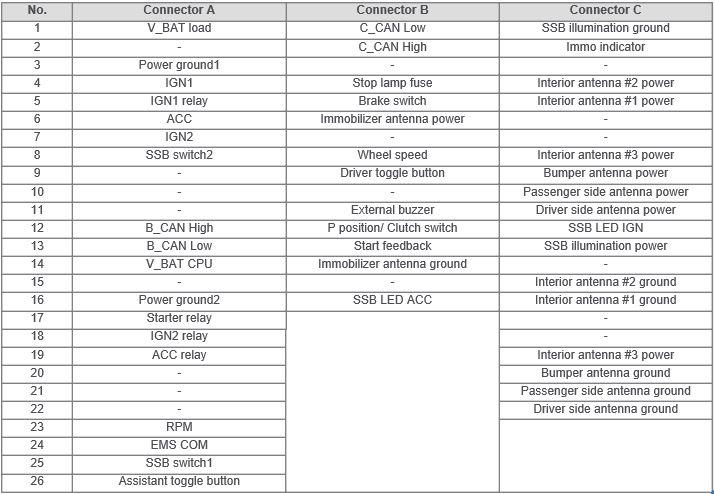

Fig 1: Smart Key Unit Connectors Terminal Identification
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
