Tucson SE, FWD
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Button Engine Start System
›
Button Engine Start System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

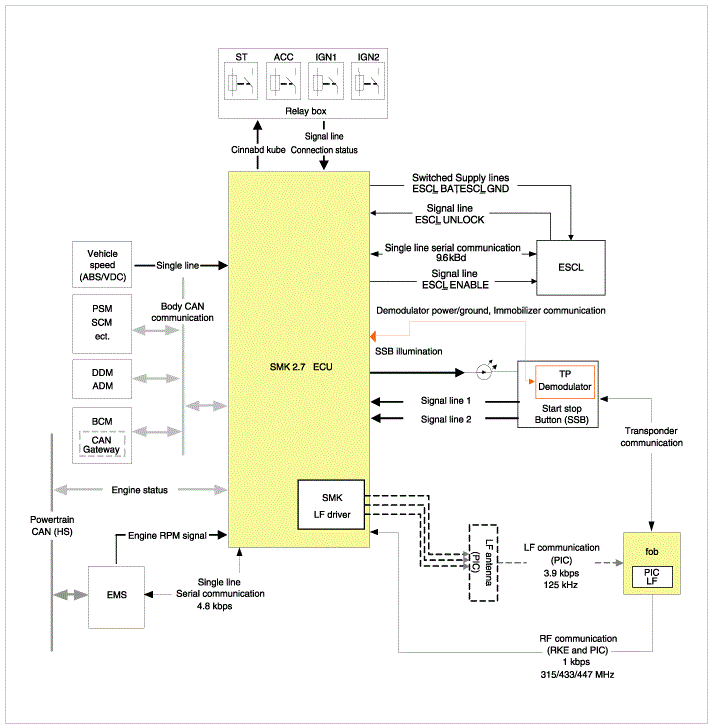

Fig 1: Button Engine Start System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
