Automatic Transaxle System - 2.4L
›
Automatic Transaxle
›
Components and Components Location
›
Components Location
Components Location

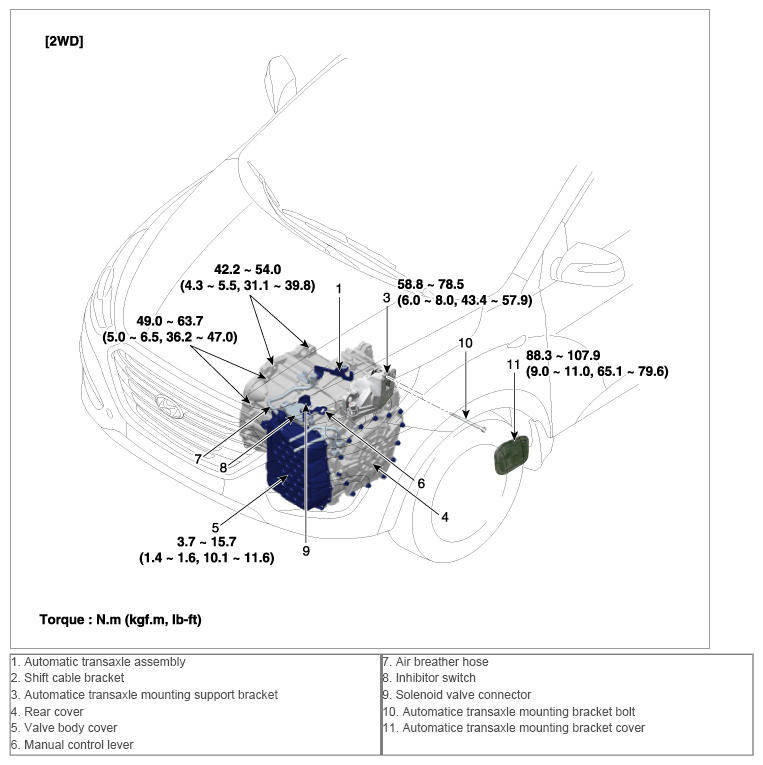

Fig 1: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (2WD)
Courtesy of HYUNDAI MOTOR AMERICA

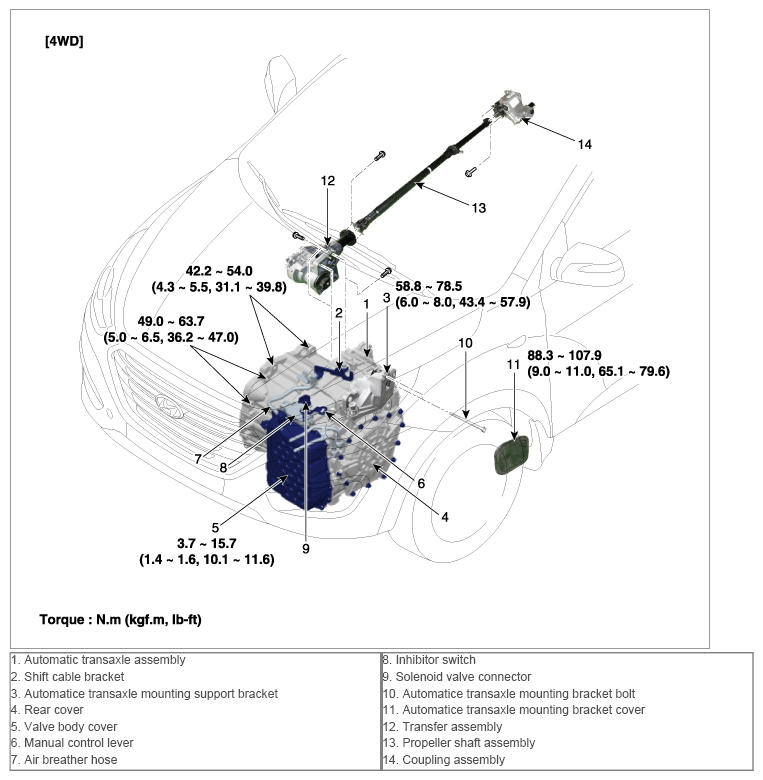

Fig 2: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (4WD)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
