Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel. (Refer to "CRASH PAD ")
  3. Disconnect the IPM connectors, loosening the nut (2EA) and the bolt (1EA), then remove the IPM.

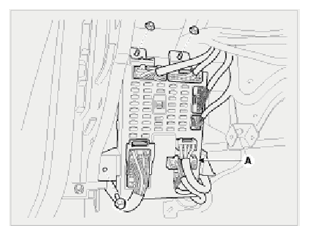

    Fig 1: Identifying IPM Connector
    G09134555Courtesy of HYUNDAI MOTOR AMERICA
  4. The installation is the reverse order of removal.
