Repair Procedures: Replacement
WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

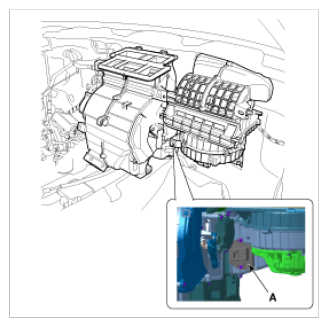

- Disconnect the blower resistor connector and then remove the blower resistor (A) after loosening the mounting screws.
Courtesy of HYUNDAI MOTOR AMERICA
- Installation is the reverse order of removal.
