Repair Procedures: Removal

  1. Remove the under cover.
  2. Disconnect the input shaft speed sensor connector (A).

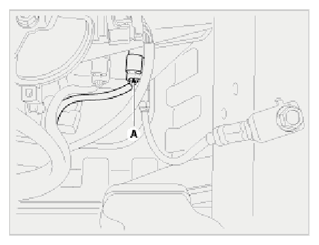

    Fig 1: Identifying Input Shaft Speed Sensor Connector
    G09135540Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the mounting bolt and then remove the input shaft speed sensor (B).

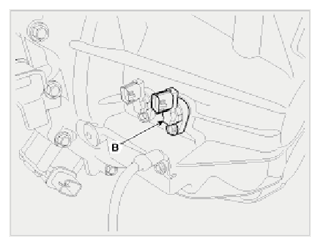

    Fig 2: Identifying Input Shaft Speed Sensor Mounting Bolt
    G09135541Courtesy of HYUNDAI MOTOR AMERICA
