Home › Hyundai › 2014 › Veloster Base, Automatic DCT Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System › Shift Lever › Components and Components Location › Components

Components and Components Location: Components

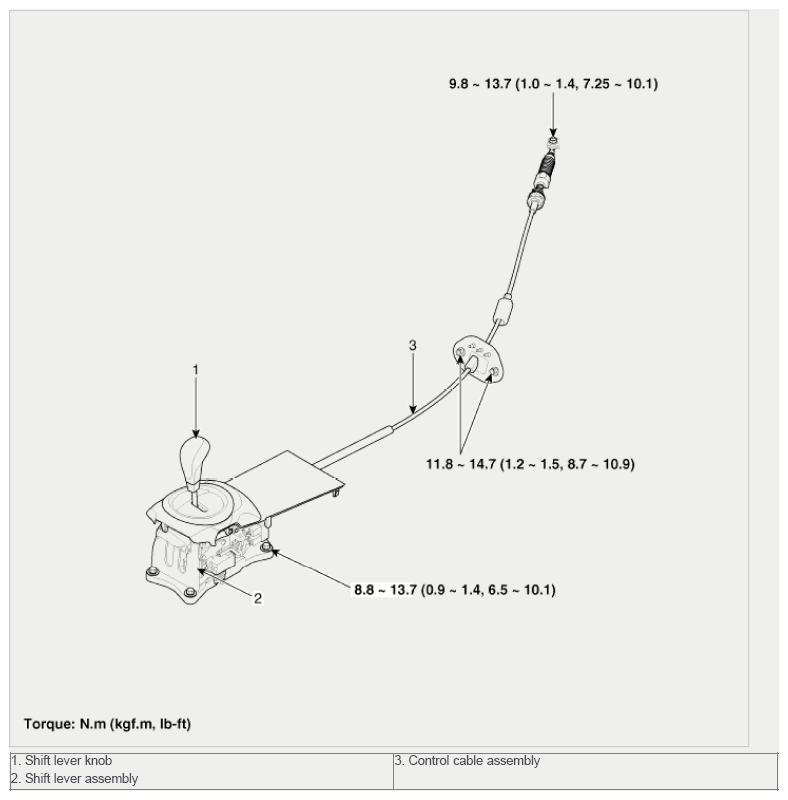

Fig 1: Shift Lever Assembly, Knob And Control Cable Assembly With Torque Specifications
G09135550Courtesy of HYUNDAI MOTOR AMERICA
