Monitor GDS Data
- Connect GDS to "DATA LINK CONNECTOR(DLC)".
- IG key "ON", Engine "OFF".

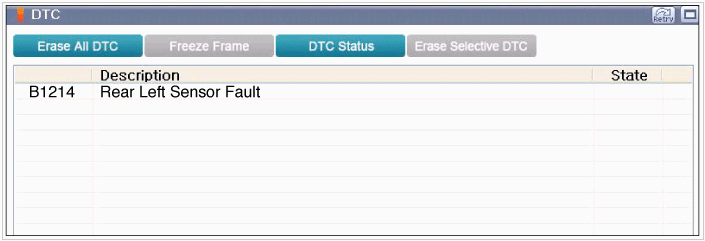

- Select "Diagnostic Trouble Codes(DTC)" with GDS.
- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC.
- Is the DTC outputted again?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in "SMART JUNCTION BOX_IPS CONTROL MODULE" or "REAR PARKING ASSIST SENSOR LH"'s connector or was repaired and "IPS CONTROL MODULE" memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
