Signal Waveform & Data

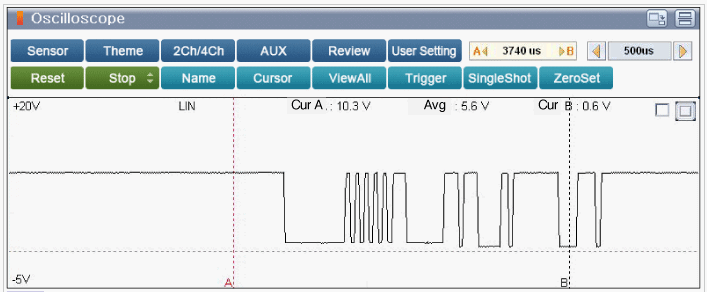

Fig 1: Identifying LIN Signal Waveform

G00547584

Courtesy of HYUNDAI MOTOR AMERICA

Fig 1) LIN signal waveform when recognize the obstacles
