Signal Waveform & Data

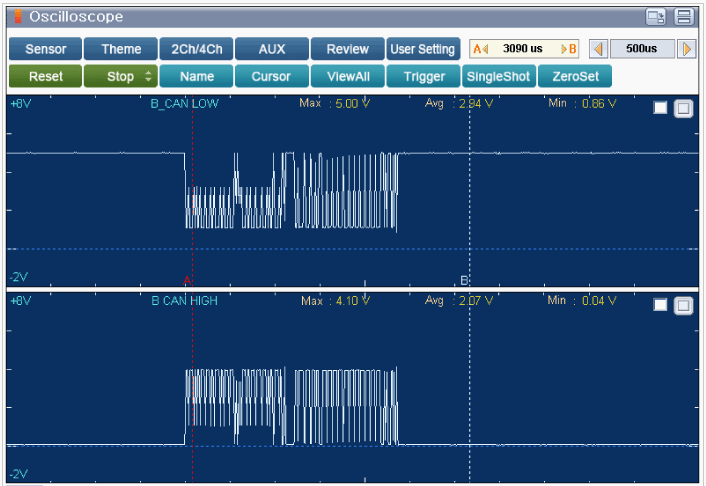

Fig 1: Display - CAN Low/High Signal Waveform

G00547602

Courtesy of HYUNDAI MOTOR AMERICA

Fig 1) B_CAN Low & High signal waveform
