Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the air duct.
  3. Remove the buzzer (A) after disconnecting the connector.

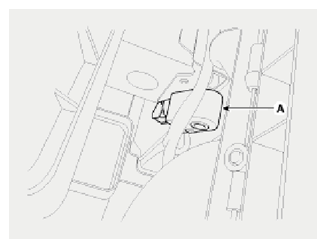

    Fig 1: Identifying Buzzer Connector
    G09134494Courtesy of HYUNDAI MOTOR AMERICA
