Projected Dimensions

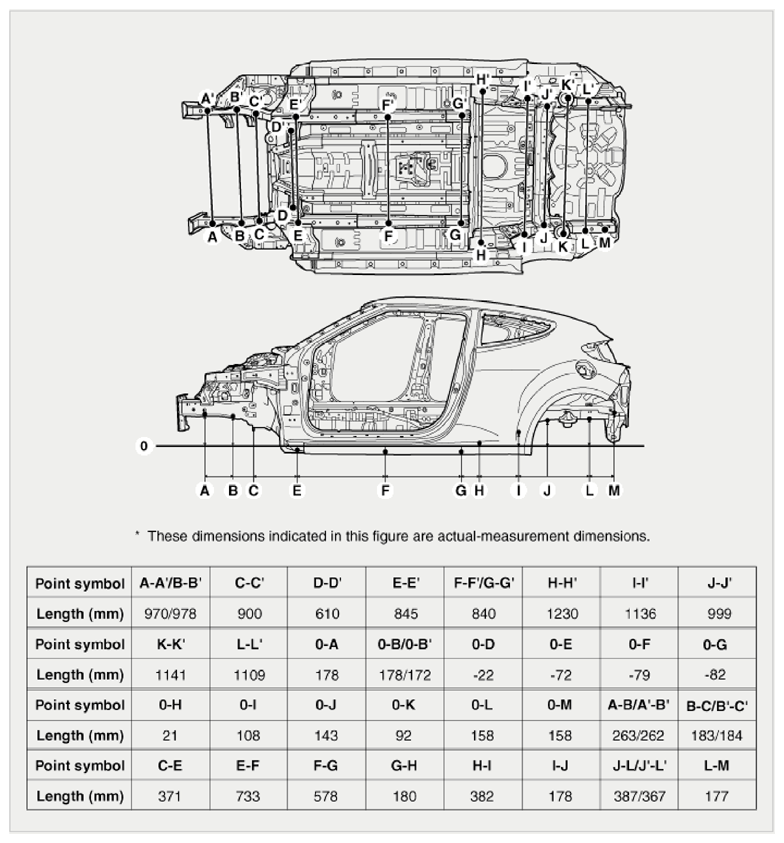

Fig 1: Under Body Measurement Dimensions
G09133974Courtesy of HYUNDAI MOTOR AMERICA

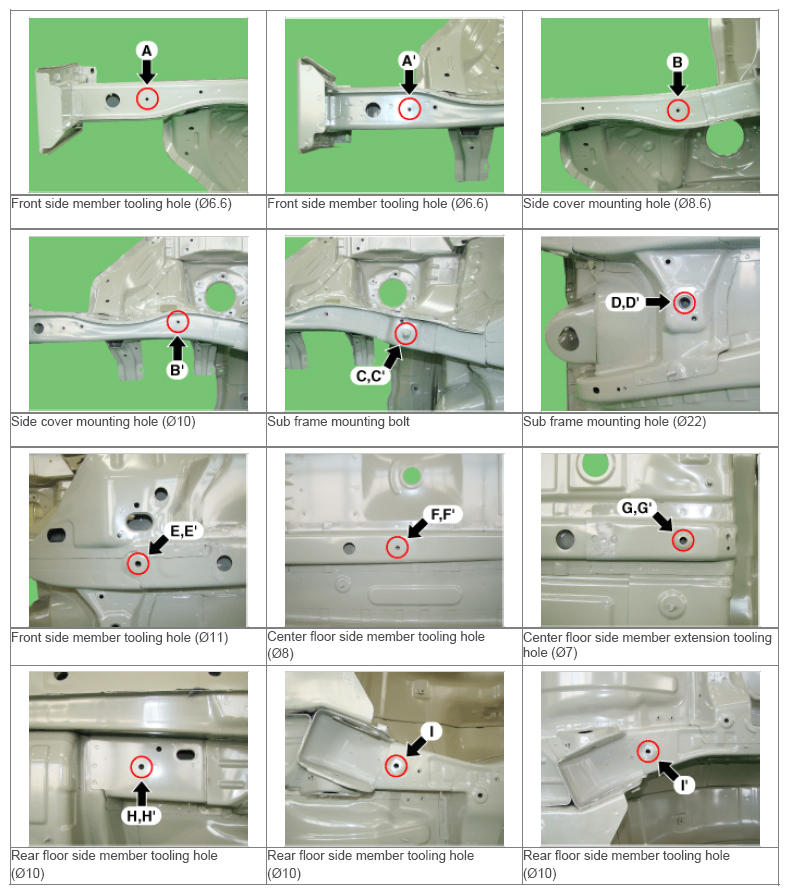

Fig 2: Locating Under Body Measurement Points (1 Of 2)
G09133975Courtesy of HYUNDAI MOTOR AMERICA

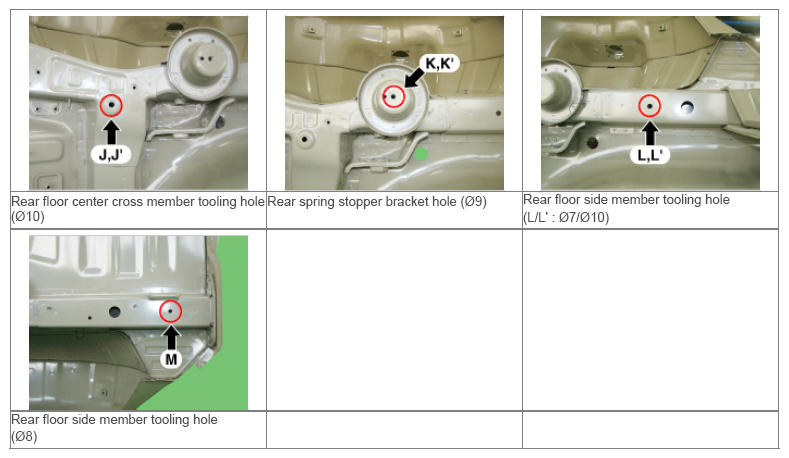

Fig 3: Locating Under Body Measurement Points (2 Of 2)
G09133976Courtesy of HYUNDAI MOTOR AMERICA
