Components and Components Location: Components

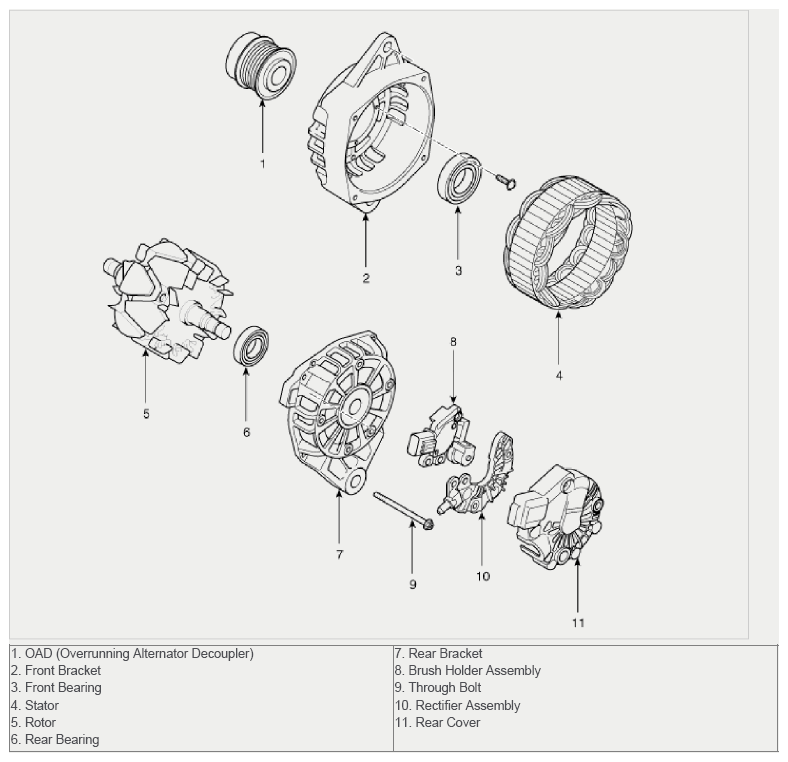

Fig 1: Engine Charging System Components Location
G09150288Courtesy of HYUNDAI MOTOR AMERICA
