Components and Components Location: Components

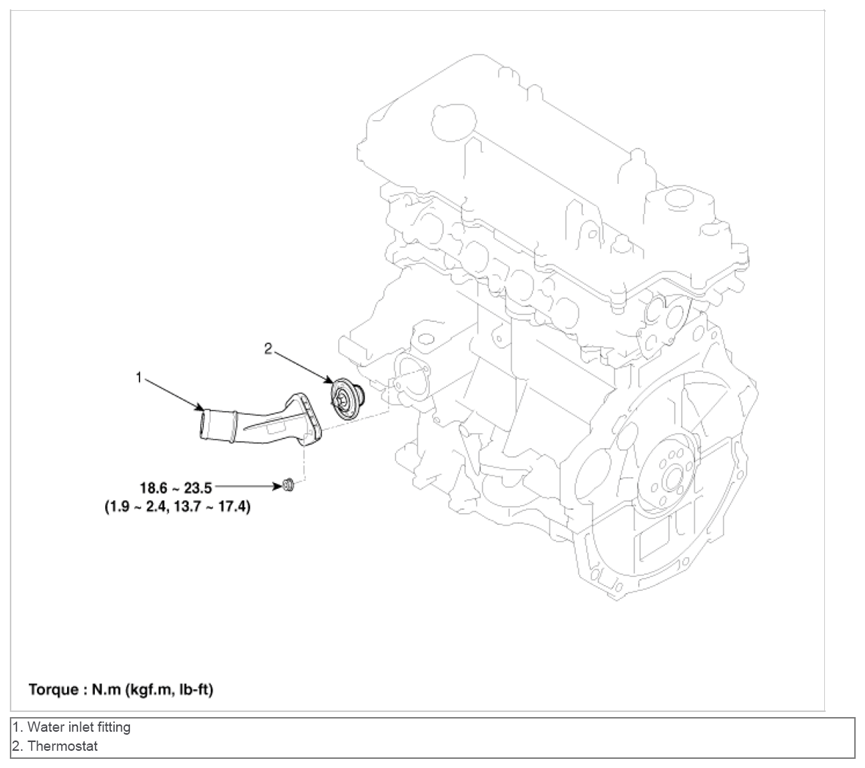

Fig 1: Thermostat And Water Inlet Fitting With Torque Specifications
G09150172Courtesy of HYUNDAI MOTOR AMERICA
