Components and Components Location: Components

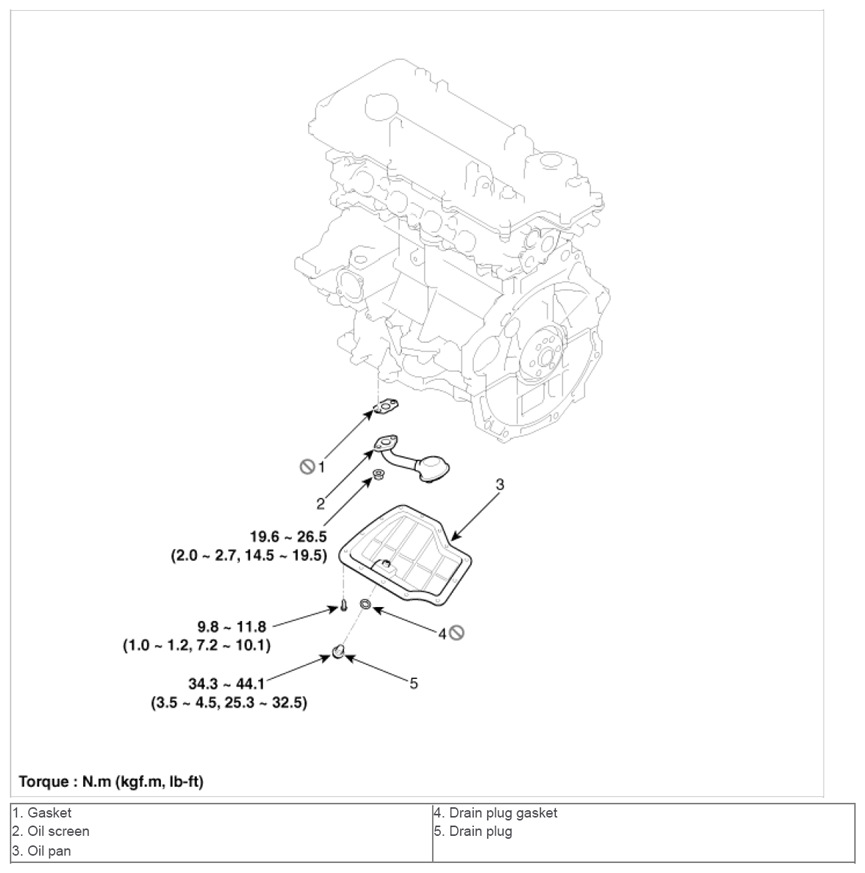

Fig 1: Oil Pan Related Replacement Components With Torque Specifications
G09150183Courtesy of HYUNDAI MOTOR AMERICA
