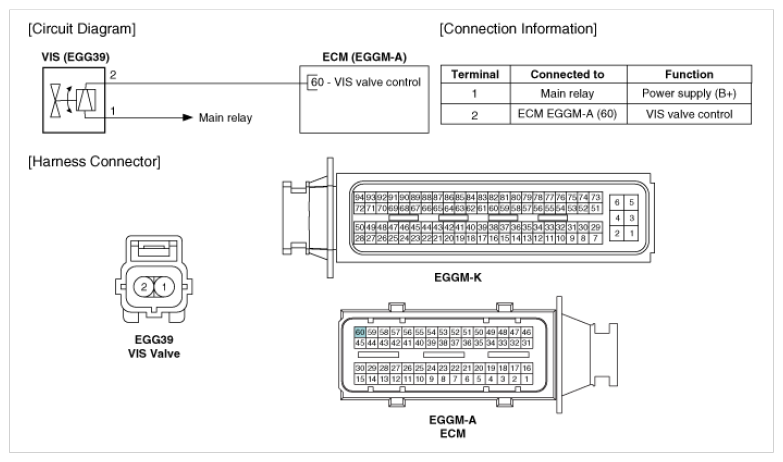

Home › Hyundai › 2014 › Veloster Base, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Non-Turbo › Variable Intake Solenoid (VIS) Valve › Schematic Diagrams › Circuit Diagram
