Repair Procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

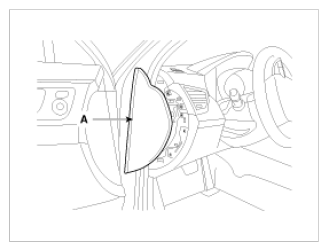

Remove the side cover (A).

Fig 1: Identifying Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

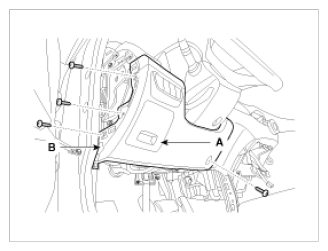

Remove the fuse box cover (A) and loosen the mounting screws and then remove the crash pad lower cover (B).

Fig 2: Identifying Fuse Box And Crash Pad Lower Cover With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

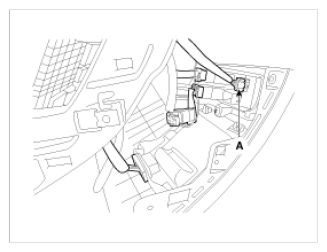

Disconnect the diagnosis connector (A).

Fig 3: Identifying Diagnosis Connector
Courtesy of HYUNDAI MOTOR AMERICA

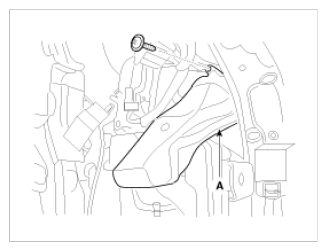

Remove the shower duct (A).

Fig 4: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR AMERICA

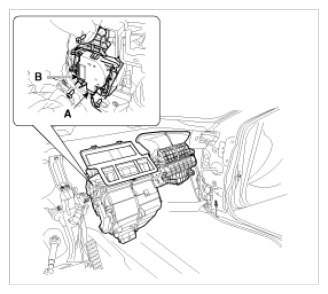

Disconnect the temperature control actuator connector (A) and loosen the mounting screws and then remove the temperature control actuator (B).

Fig 5: Identifying Temperature Control Actuator And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse order of removal.
