Repair Procedures: Replacement
WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the heater & blower unit.
(Refer to HA group - "HEATER UNIT ")
- Remove the heater unit from the blower unit.
(Refer to HA group - "HEATER UNIT ")

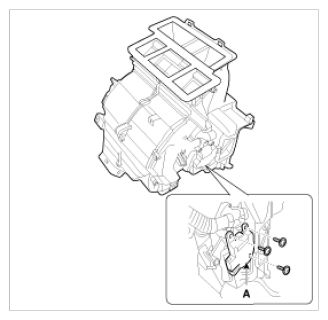

- Loosen the mounting screws and then remove the temperature control actuator (A).
