Repair Procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the heater & blower unit.
(Refer to "HEATER UNIT ")
Remove the blower unit (A) from the heater unit after loosening a mounting screws.

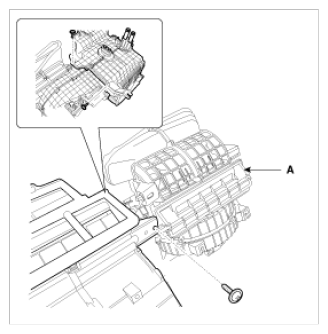

Fig 1: Identifying Blower Unit With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Make sure that there is no air leaking out of the blower and duct joints
Installation is the reverse order of removal.
