Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

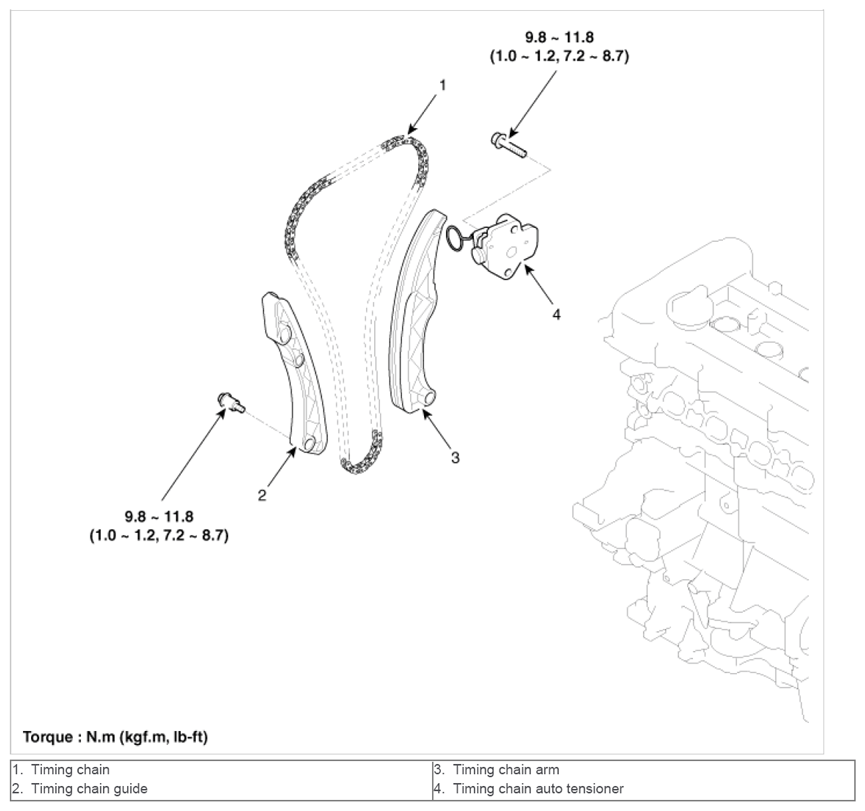

Fig 1: Timing Chain Related Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
