Repair Procedures: Inspection

Remove the following items.
1. Air cleaner assembly
  (Refer to "AIR CLEANER ")
2. Battery and battery tray
  (Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

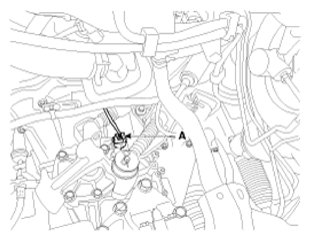

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

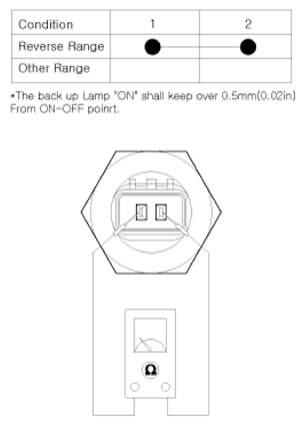

Fig 2: Checking Continuity Between Backup Lamp Switch Terminals No. 1 And 2
Courtesy of HYUNDAI MOTOR AMERICA
