Components and Components Location: Components

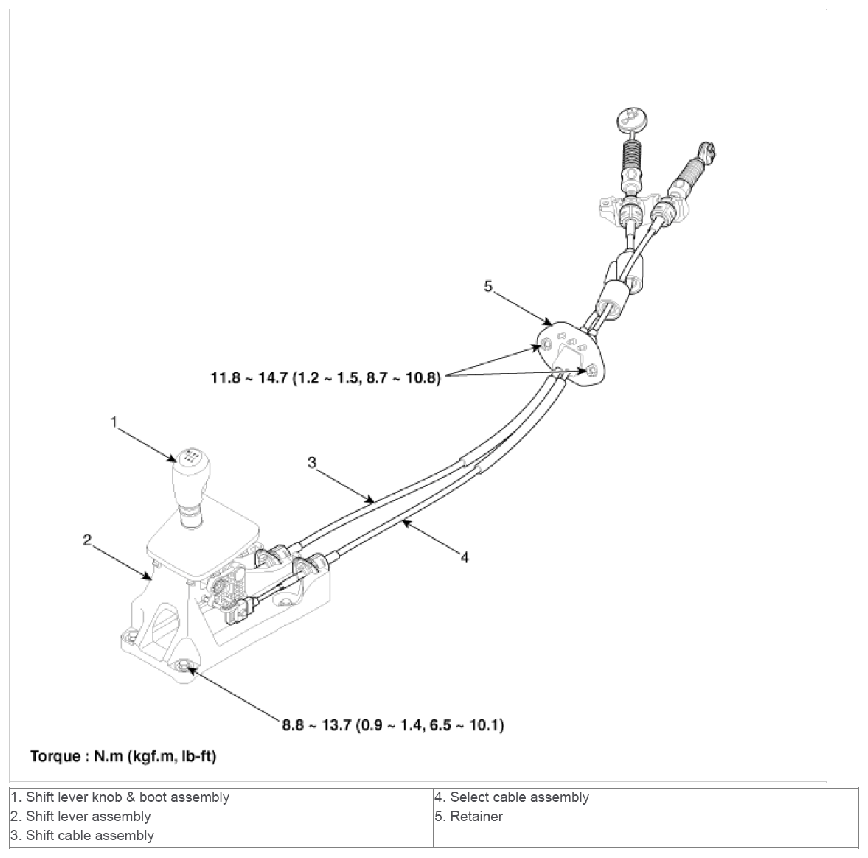

Fig 1: Control Cable Components With Torque Specifications
G09150507Courtesy of HYUNDAI MOTOR AMERICA
