Components and Components Location: Components

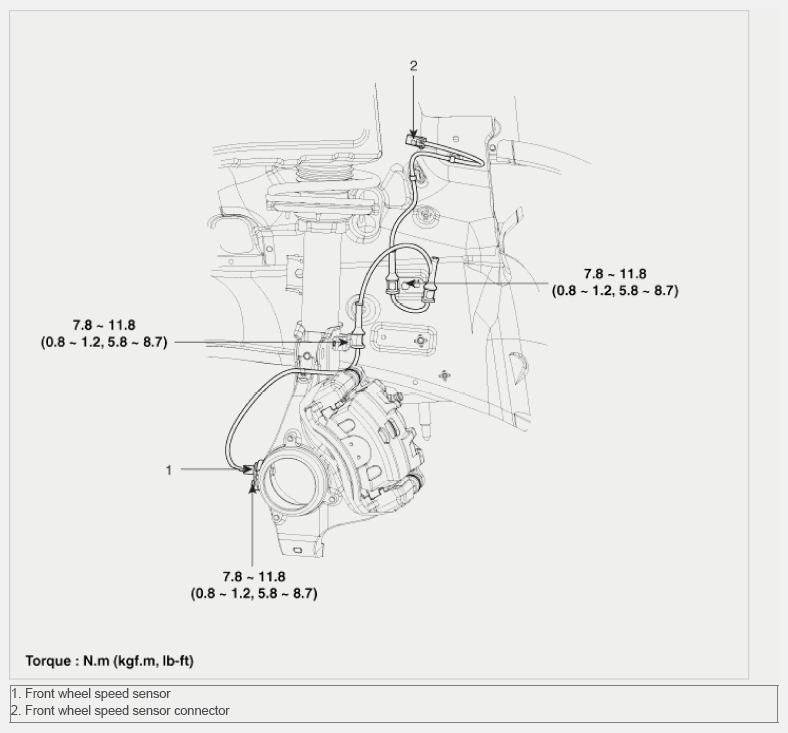

Fig 1: Front Wheel Speed Sensor And Connector With Torque Specifications
G09133914Courtesy of HYUNDAI MOTOR AMERICA
