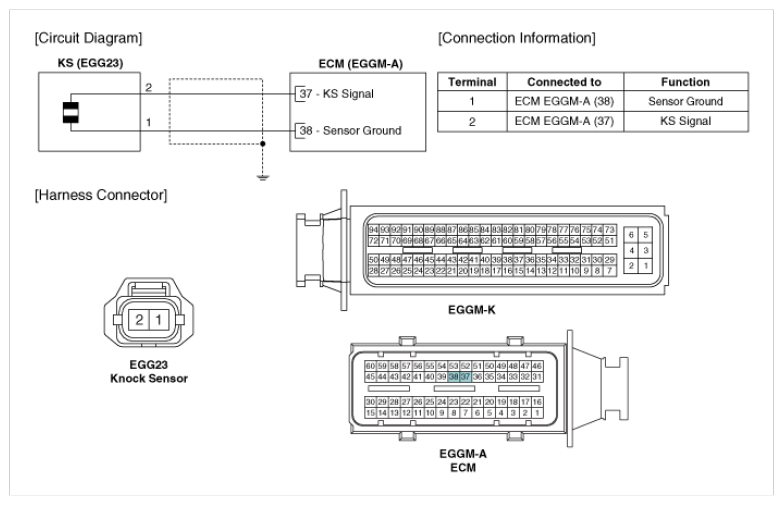

Home › Hyundai › 2014 › Veloster RE:FLEX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Non-Turbo › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
