Home › Hyundai › 2014 › Veloster RE:FLEX › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transaxle Assembly - Non-Turbo › Engine Mounting › Components and Components Location › Components

Components and Components Location: Components

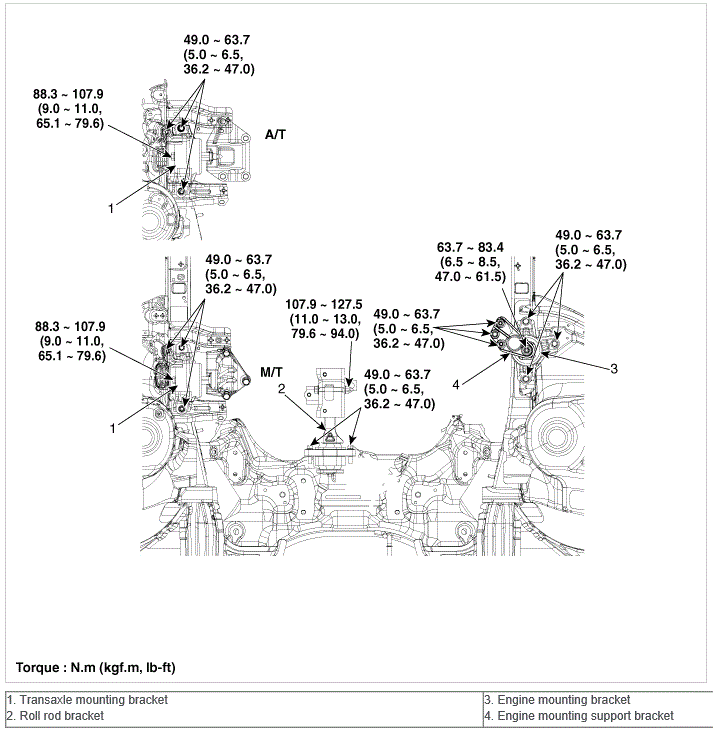

Fig 1: Engine Mounting Components With Torque Specifications
G00547195Courtesy of HYUNDAI MOTOR AMERICA
