Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the Ambient Temperature Sensor connect (A).
  3. Remove the Ambient Temperature Sensor bracket (B).

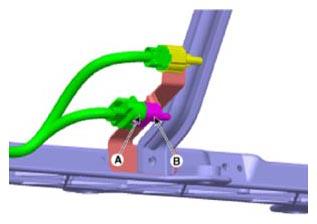

    Fig 1: Ambient Temperature Sensor Connect And Bracket
    G09151064Courtesy of HYUNDAI MOTOR AMERICA
