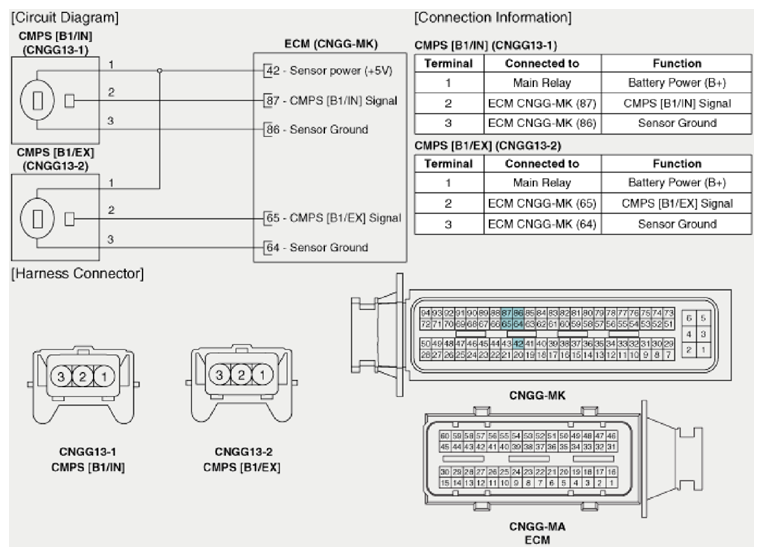

Home › Hyundai › 2014 › Veloster Turbo, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Turbo › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › (M/T)
