Engine Control System - Turbo
›
ETC (Electronic Throttle Control) System Loading
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

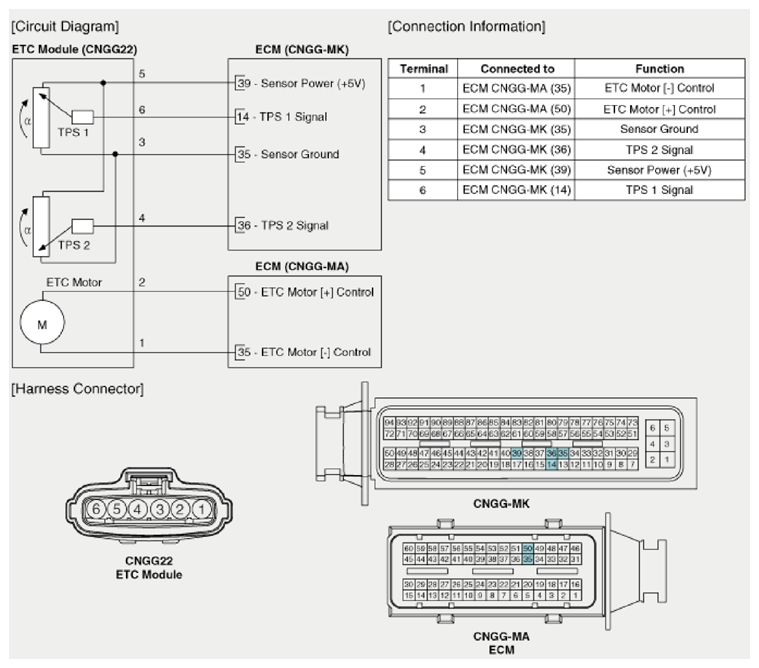

Fig 1: Electronic Throttle Control Module Circuit Diagram (M/T)
Courtesy of HYUNDAI MOTOR AMERICA
