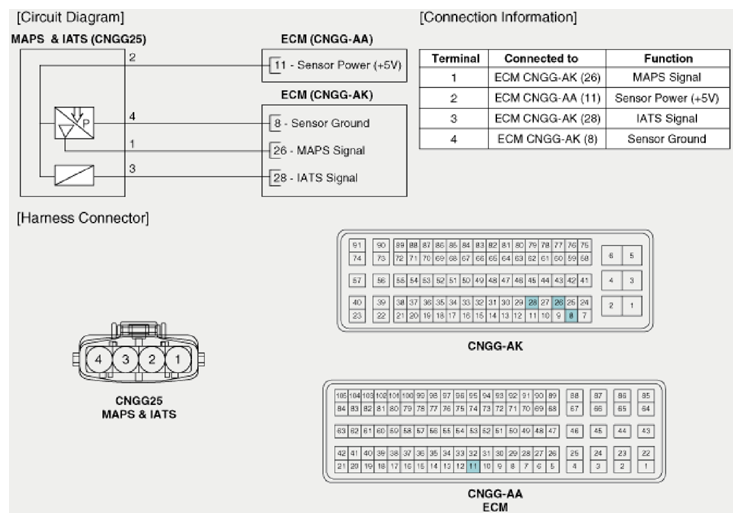

Home › Hyundai › 2014 › Veloster Turbo, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Turbo › Intake Air Temperature Sensor (IATS) › Schematic Diagrams › Circuit Diagram › (A/T)
