Components Location

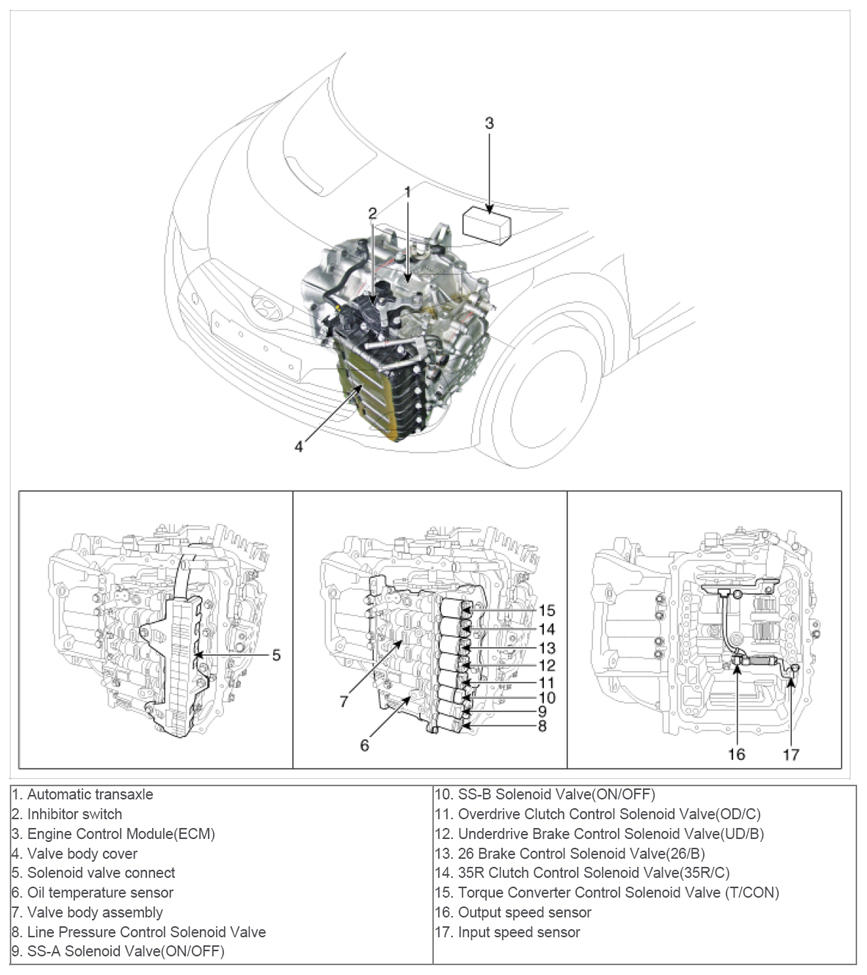

Fig 1: Identifying Automatic Transaxle System Related Components
G09150589Courtesy of HYUNDAI MOTOR AMERICA

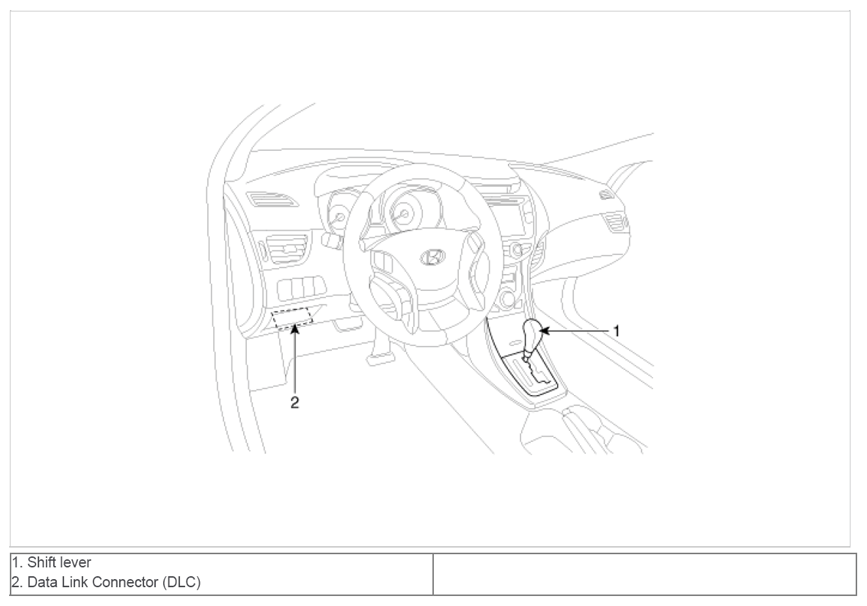

Fig 2: Identifying Shift Lever And Data Link Connector
G09150590Courtesy of HYUNDAI MOTOR AMERICA
