Circuit Diagram

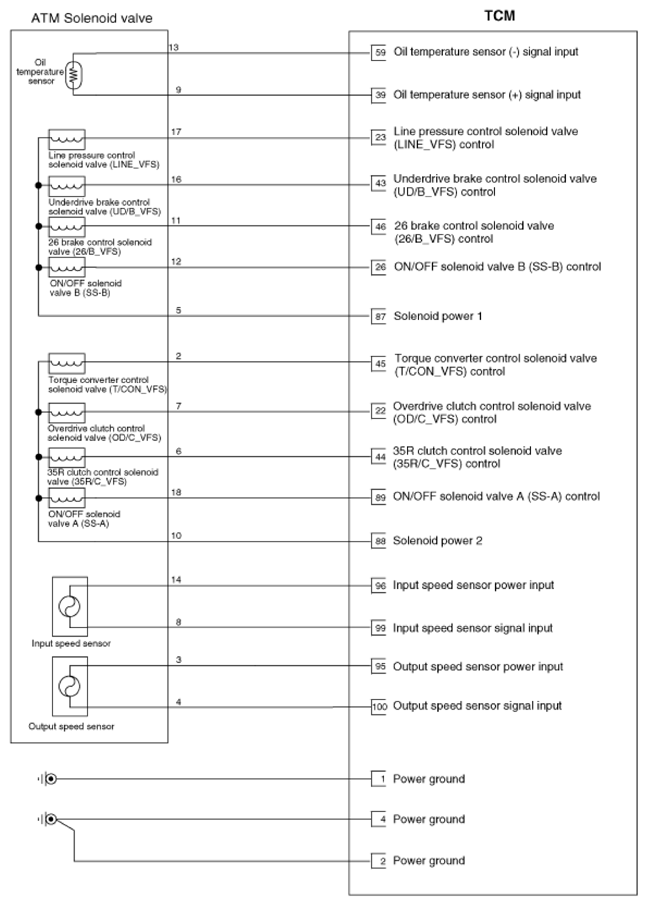

Fig 1: ATM Solenoid Valve And TCM - Circuit Diagram (1 Of 2)
G09150593Courtesy of HYUNDAI MOTOR AMERICA

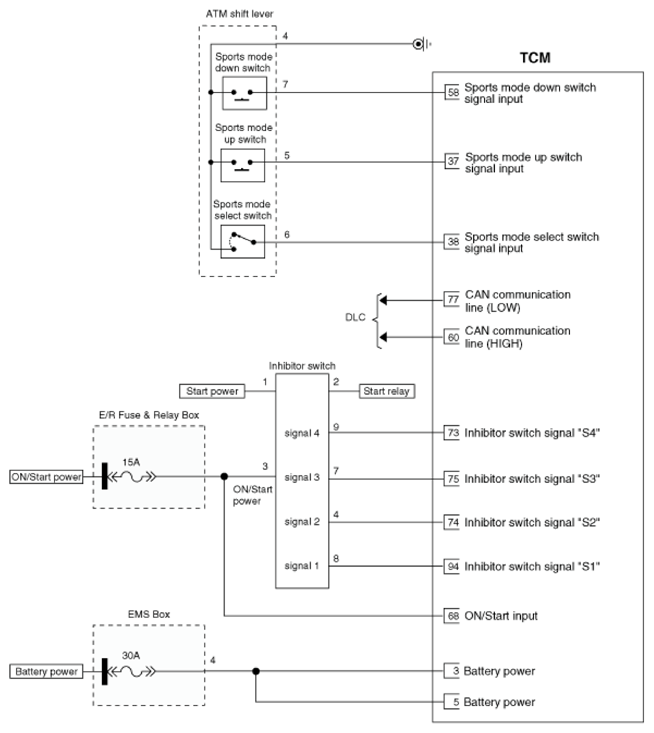

Fig 2: ATM Solenoid Valve And TCM - Circuit Diagram (2 Of 2)
G09150594Courtesy of HYUNDAI MOTOR AMERICA
